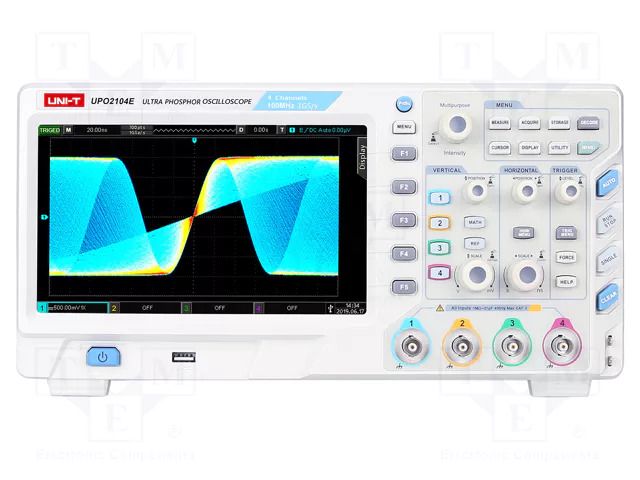

Oscilloscope: digital; Ch: 4; 100MHz; 1Gsps; 56Mpts; LCD TFT 8" UNI-T
Product Code: UPO2104E
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Oscilloscope: digital; Ch: 4; 100MHz; 1Gsps; 56Mpts; LCD TFT 8" UNI-T
Specifications
Supplier product description
Oscilloscope: digital; Ch: 4; 100MHz; 1Gsps; 56Mpts; LCD TFT 8"
Supplier parameters
Product code
UPO2104E
Band
100MHz
Conform to the norm
EN 61010
Dimensions
336x164x108mm
Display resolution
800x480
Input coupling
AC, DC, GND
Input impedance
1MΩ/21pF
Input sensitivity
1mV/div...20V/div
Interface
LAN
Kind of display used
LCD TFT 8"
Manufacturer
UNI-T
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
56Mpts
Number of channels
4
Related items
MSO/UPO2000-AUTO
Rise time
≤3.5ns
Sampling
1Gsps
Standard equipment
USB cable
Supply voltage
100...240V AC
Time base
5n...50s/div
Type of oscilloscope
digital
Trigger
video signal
Vertical resolution
8bit
Supplier's product code
UPO2104E
Product ID
U-2596408
Brand
UNI-T
