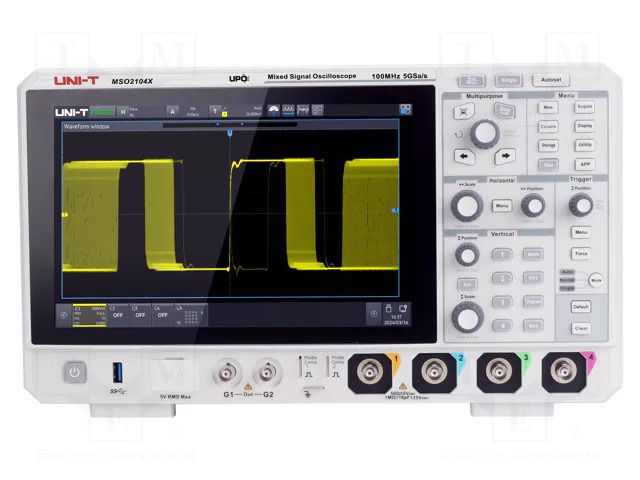

Oscilloscope: digital; Ch: 4; 100MHz; 5Gsps; 100Mpts; 2n÷1ks/div UNI-T
Product Code: MSO2104X
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Oscilloscope: digital; Ch: 4; 100MHz; 5Gsps; 100Mpts; 2n÷1ks/div UNI-T
Specifications
Supplier product description
Oscilloscope: digital; Ch: 4; 100MHz; 5Gsps; 100Mpts; 2n÷1ks/div
Supplier parameters
Product code
MSO2104X
Brand
UNI-T
Supplier's product code
MSO2104X
Product ID
U-4458974
Band
100MHz
Dimensions
378x218x120mm
Display resolution
1280x800
Input coupling
AC, DC, GND
Input impedance
1MΩ/16pF
Input sensitivity
500µV/div...10V/div
Interface
LAN
Kind of display used
LCD TFT 10,1"
Manufacturer
UNI-T
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
100Mpts
Number of channels
4
Rise time
≤3.5ns
Sampling
5Gsps
Standard equipment
USB cable
Supply voltage
100...240V AC
Time base
2n...1ks/div
Type of oscilloscope
digital
Trigger
video signal
Vertical resolution
8bit
