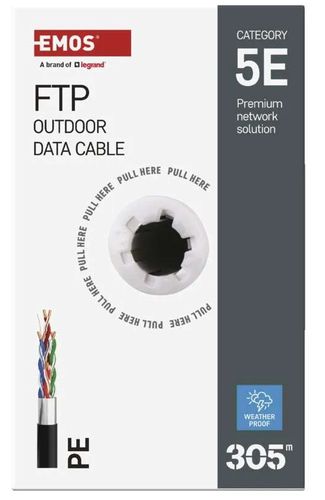

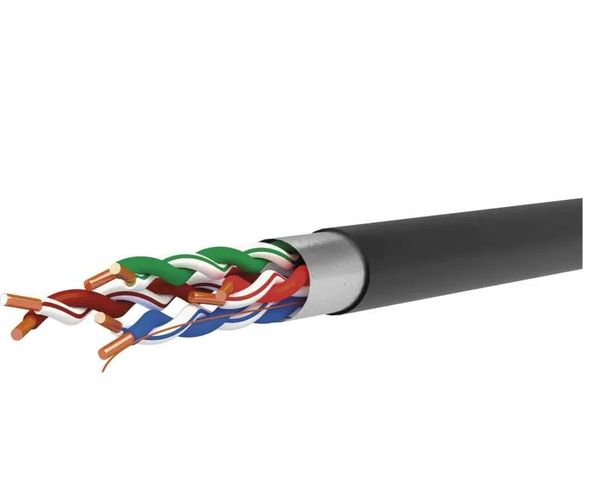

Outdoor F/UTP CAT5E cable 24AWG, black, Eca
Product Code: KO/FTP/S/EMOS
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
| cable structure | wire |
| category | CAT5E |
| material of the inner conductor | copper (Cu) |
| shielding | no |
| AWG | 24 |
| sheath color | black (RAL 9005) |
| wire insulation | HDPE |
| maximum operating humidity | 93% |
| mounting temperature | +5 °C to +60 °C |
| dangerous substances | none |
| highest supported protocol | 1000 Base-TX (Gigabit Ethernet) |
| connectors | no |
| cable sheath | PE |
| low smoke zero halogen (LSZH) coat | no |
| jacket diameter | 5–6 mm |
| inner conductor diameter | 0.48 mm |
| storage temperature | -20 °C to +60 °C |
| conductor insulation thickness | 0.22 mm |
| jacket thickness | 1.1 mm |
| reaction to the fire | Eca |
| marking of cable | UTP Cat5E PE OUTDOOR 1 – 305 m |
| number of wires | 8 |
| use | outdoor |
Specifications
SKU
437020
Weight
0 kg.
Barcodes
8592920141397
Brand
Cable color
Black
category
CAT 5e
Conductor
Cu
Product code
KO/FTP/S/EMOS
Supplier product description
Supplier parameters
AWG
24
cable sheath
PE
cable structure
wire
category
CAT5E
conductor insulation thickness
0.22 mm
connector protection type
–
connectors
no
dangerous substances
none
designed for cable
–
highest supported protocol
1000 Base-TX (Gigabit Ethernet)
inner conductor diameter
0.48 mm
jacket diameter
5–6 mm
jacket thickness
1.1 mm
length
305 m
low smoke zero halogen (LSZH) coat
no
marking of cable
UTP Cat5E PE OUTDOOR 1 – 305 m
material of the inner conductor
copper (Cu)
maximum operating humidity
93 %
mounting temperature
+5 °C to +60 °C
number of wires
8
packaging
305 m, paper box
product
FTP cable without connectors
reaction to the fire
Eca
sheath color
black (RAL 9005)
shielding
no
storage temperature
-20 °C to +60 °C
strength member
–
type
FTP CAT 5E PE
use
outdoor
warranty period
25 years
wire insulation
HDPE
