Product description

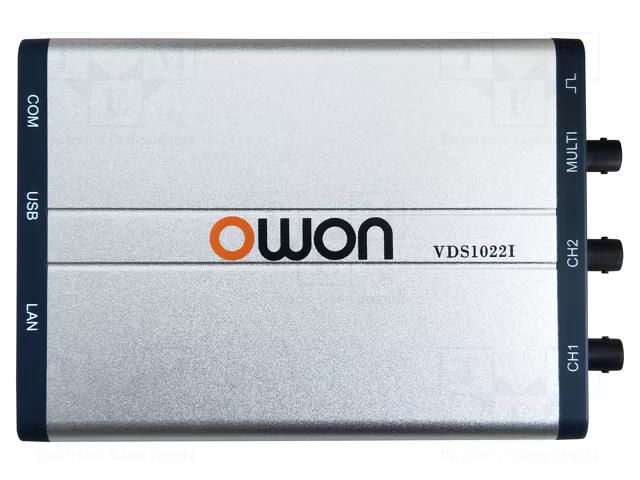

PC connected oscilloscope; 25MHz; Ch: 2; 5kpts; 100Msps; 400V; 8bit OWON
Useful information
Specifications
SKU
U-2304904
Product code
VDS1022I
Supplier product description
PC connected oscilloscope; 25MHz; Ch: 2; 5kpts; 100Msps; 400V; 8bit
Useful information
Supplier parameters
Product code
VDS1022I
Band
25MHz
Dimensions
170x120x18mm
Input coupling
AC, DC, GND
Input impedance
1MΩ/10pF
Input sensitivity
5mV/div...5V/div
Interface
USB 2.0
Manufacturer
OWON
Max. input voltage
400V
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
5kpts
Number of channels
2
Rise time
≤14ns
Sampling
100Msps
Standard equipment
case
Supply voltage
5V DC
Support
SCPI
Type of oscilloscope
PC connected oscilloscope
Trigger
video signal
Trigger modes
automatic
Vertical resolution
8bit
Supplier's product code
VDS1022I
Product ID
U-2304904
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
