Product description

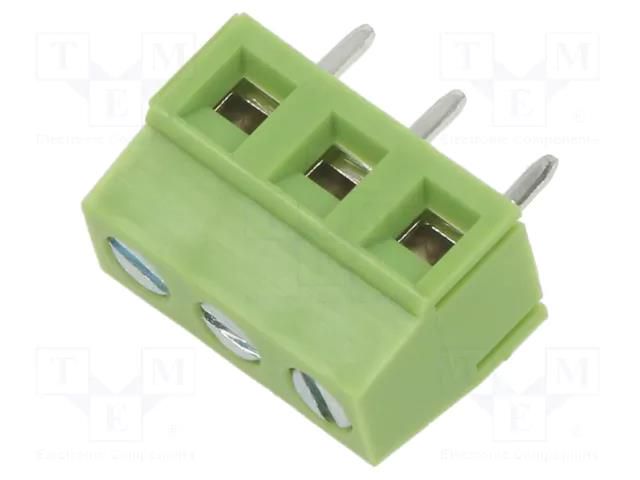

Connector: PCB terminal block; terminal; 12A; 300V; angled 90° XINYA
Specifications
SKU
U-3097244
Product code
XY127V-3P-5.0-GN
Supplier product description
Connector: PCB terminal block; terminal; 12A; 300V; angled 90°
Supplier parameters
Product code
XY127V-3P-5.0-GN
Brand
XINYA
Supplier's product code
XY127V-3P-5.0-GN
Product ID
U-3097244
Body material
polyamide
Colour
green
Connector
terminal
Connector pinout layout
1x3
Connectors features
assembling possibility
Contact material
brass
Contact plating
tinned
Contacts pitch
5mm
Current rating
12A
Depth
8.3mm
Electrical mounting
screw terminal
Flammability rating
UL94V-0
Height
10mm
Length
15mm
Manufacturer
XINYA
Mechanical mounting
on PCBs
Number of terminals
3
Number of ways
3
Operating temperature
-40...105°C
Rated voltage
300V
Spatial orientation
angled 90°
Type of connector
PCB terminal block
Wire cross-section
1.5mm<sup>2</sup>
Wire size
26AWG...14AWG
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
