Product description

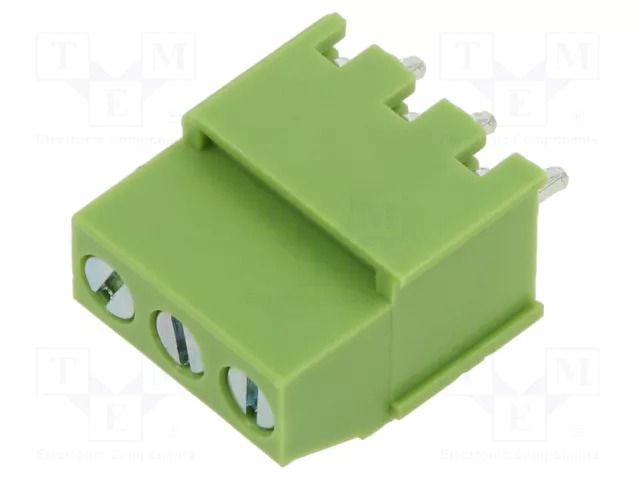

Connector: PCB terminal block; terminal; 20A; 300V; angled 90° XINYA
Useful information
Specifications
Supplier product description
Connector: PCB terminal block; terminal; 20A; 300V; angled 90°
Useful information
Supplier parameters
Product code
XY129VB-3P-5.0-GN
Brand
XINYA
Supplier's product code
XY129VB-3P-5.0-GN
Product ID
U-3097259
Body material
polyamide
Colour
green
Connector
terminal
Connector pinout layout
1x3
Connectors features
assembling possibility
Contact material
brass
Contact plating
tinned
Contacts pitch
5mm
Current rating
20A
Electrical mounting
screw terminal
Flammability rating
UL94V-0
Manufacturer
XINYA
Mechanical mounting
on PCBs
Number of terminals
3
Number of ways
3
Operating temperature
-40...105°C
Rated voltage
300V
Spatial orientation
angled 90°
Type of connector
PCB terminal block
Wire cross-section
2.5mm<sup>2</sup>
Wire size
26AWG...12AWG
