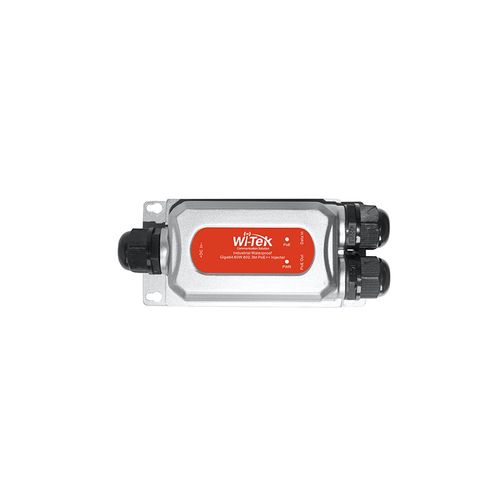

PoE Repeater Wi-tek WI-POE56-60W-I-O

Product Code: TVUWIPOE5660WIO
The photo is for illustration only. Please refer to the description for exact product specifications.
More similar products

Price range

AmountPrice with tax (pcs)
1+
€117.75€117.75
wholesale

Min. qty: 1

Multiplier: 1

Total:

€117.75
2025-06-20 Estimated delivery

*Total delivery cost will be calculated in the checkout.

Warehouse in Europe

Warehouse in Europe

90% positive feedback

94%+ positive feedback

30 day money back guarantee

30 day money back guarantee

Product description

PoE Repeater Wi-tek WI-POE56-60W-I-O

Specifications

SKU
U-4589782
Product code
TVUWIPOE5660WIO

Supplier product description

  • Type: PoE repeater
  • Model: WI-POE56-60W-I-O
  • Brand: Wi-Tek
  • Input: 1x 1000 Mbps
  • Output: 1x 1000 Mbps PoE (60 W)
  • Power: 1x power port
  • MDI/MDI-X: Auto
  • Protection rating: IP68
  • Operating temperature: –40Β°C to +80Β°C

  • General
  • ModelWI-POE56-60W-I-O
  • Hardware VersionV1
  • Interfaces1 x 100/1000Mbps Ethernet Port (Data IN), 1 x 100/1000Mbps Hi-PoE Output Port
  • PoE StandardIEEE 802.3af/at/bt (60W)
  • PoE Power Budget60W Max
  • PoE Power Supply TypeMid-span and End-span
  • PoE Pin Assignment1/2(+), 3/6(-) or 4/5(+), 7/8(-)
  • Input PowerDC 24–56V, 3A Max
  • Power ConsumptionIdle: 3W
  • LED IndicatorsPower: On=Normal, Off=Power off/failure; PoE: Green=802.3bt PoE active, Orange=UPoE mode active
  • Fan QuantityFanless
  • Dimensions150 Γ— 72 Γ— 46 mm
  • Package Dimensions242 Γ— 182 Γ— 84 mm
  • WeightNet: 0.47kg, Package: 0.86kg
  • InstallationWall-mounted, Desktop
  • Surge ImmunityIEC 61000-4-5: Common mode 6kV, Differential mode 2kV
  • ESD ProtectionIEC 61000-4-2: Contact discharge 8kV, Air discharge 10kV
  • Operating Temperature-40℃ to 75℃ (-40℉ to 167℉)
  • Operating Humidity5%–90% RH, non-condensing
  • Storage Temperature-40℃ to 85℃ (-40℉ to 185℉)
  • Storage Humidity5%–95% RH, non-condensing
  • CertificationCE, FCC, RoHS, UKCA, RCM
  • Special FeaturesIndustrial Waterproof Design, Plug and Play, No Configuration Required, Overload and Short Circuit Protection
  • Package ContentsPoE Injector x1, M22 Waterproof Gland x3, Wrench x1, Ground Wire x1, Quick Installation Guide x1

Supplier parameters

Product code
TVUWIPOE5660WIO
Category
PoE
Supplier's product code
TVUWIPOE5660WIO
Product ID
U-4589782
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
