Product description

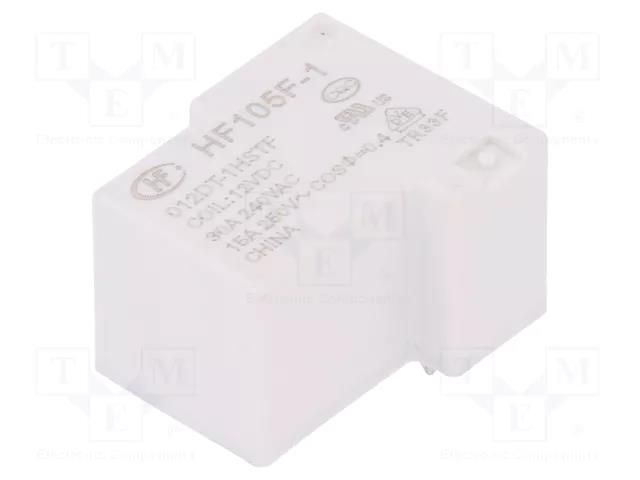

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; max.277VAC HONGFA RELAY
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; max.277VAC
Useful information
Supplier parameters
Product code
HF105F1/012DT-1HST
Brand
HONGFA RELAY
Supplier's product code
HF105F1/012DT-1HST
Product ID
U-204060
AC contacts rating @R
30A / 240V AC
Body dimensions
32.3x27.1x20mm
Coil power consumption
0.9W
Coil resistance
155Ω
Coil voltage min.
9V DC
Contact current max.
40A
Contact material
AgSnO<sub>2</sub>
Contact resistance
50mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
20A / 28V DC
Manufacturer
HONGFA RELAY
Mechanical durability
10000000 cycles
Mounting
PCB
Operate time
15ms
Operating temperature
-55...85°C
Rated coil voltage
12V DC
Relay variant
power
Release time
10ms
Switched voltage
max. 28V DC
Switching capacity
7.2kVA
Type of relay
electromagnetic
