Relay: electromagnetic; DPST-NO; Ucoil: 240VAC; 30A; max.28VDC; T92 TE Connectivity
Product Code: T92S7A22-240

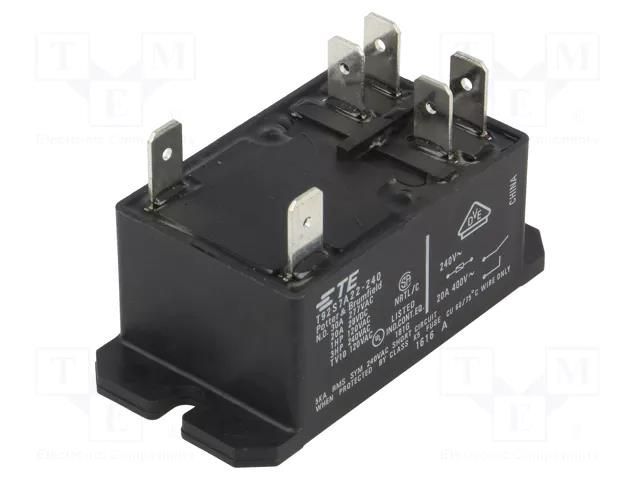

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; DPST-NO; Ucoil: 240VAC; 30A; max.28VDC; T92 TE Connectivity
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPST-NO; Ucoil: 240VAC; 30A; max.28VDC; T92
Useful information
Supplier parameters
Product code
T92S7A22-240
Brand
TE Connectivity
Supplier's product code
T92S7A22-240
Product ID
U-345312
AC contacts rating @R
30A / 277V AC
Body dimensions
65.85x34.54x26.42mm
Coil power consumption
4W
Coil resistance
3.8kΩ
Contact current max.
30A
Contact material
AgCdO
Contacts configuration
DPST-NO
DC contacts rating @R
20A / 28V DC
Leads
connectors
Leads dimensions
6.35x0.8mm
Manufacturer
TE Connectivity
Manufacturer series
T92
Mechanical durability
5000000 cycles
Mounting
on panel
Operating temperature
-40...85°C
Rated coil voltage
240V AC
Relay variant
power
Switched voltage
max. 28V DC
Type of relay
electromagnetic
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
