Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; max.277VAC TE Connectivity
Product Code: T9AS1D22-12

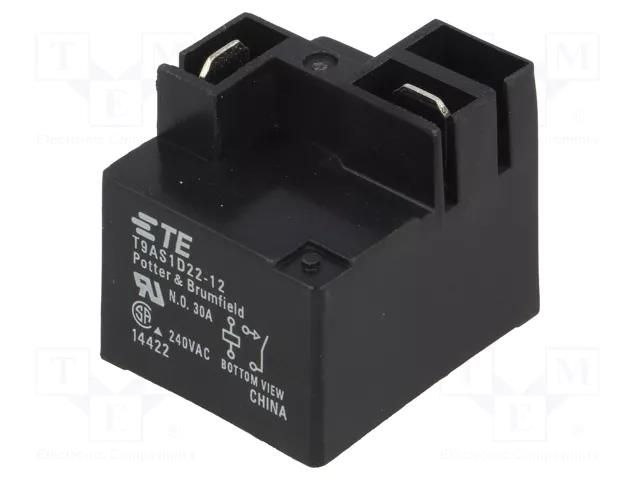

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; max.277VAC TE Connectivity
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; max.277VAC
Useful information
Supplier parameters
Product code
T9AS1D22-12
Supplier's product code
T9AS1D22-12
Product ID
U-345425
AC contacts rating @R
30A / 240V AC
Body dimensions
32.5x27.4x27.9mm
Coil power consumption
1W
Coil resistance
144Ω
Coil voltage min.
9V DC
Contact current max.
30A
Contact material
AgCdO
Contact resistance
75mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
10A / 28V DC
Leads
for PCB
Leads dimensions
6.35x0.8mm
Manufacturer
TE Connectivity
Manufacturer series
T9A
Mechanical durability
10000000 cycles
Mounting
PCB
Operating temperature
-55...85°C
Rated coil voltage
12V DC
Relay variant
power
Switched voltage
max. 28V DC
Type of relay
electromagnetic
Brand
TE Connectivity
