Programmable DC Power Supply, 4 channels, 328W, CH1/CH2:0~30V/5A CH3:0~6V/3A, CH4:5V, 2A, 10mV, 1mA RS232, RS485, USB, LAN, UNI-T
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
SHORT DESCRIPTION

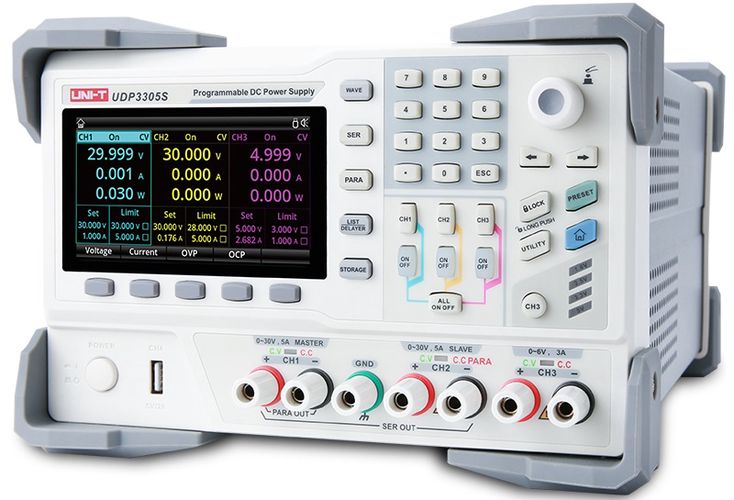

The UDP3305S-E is a high-end programmable linear DC power supply. It features a clear LCD user interface, excellent performance, various analysis functions and communication interfaces. This series meets a wide range of user testing needs. It aims to provide a cost-effective programmable DC power supply for education, research, industry and other applications.
BASIC PARAMETERS
| Parameter | Value |
| Type | Linear |
| Channels | 4 |
| Total power | 328W |
| Output voltage | 0~30V |
| Output current | 0~5A |
| Write to | 1mV, 1mA |
| Setting accuracy | <0.03%+10mV <0.2%+5mA |
| Connection | USB device, RS-232, LAN, USB host, Digital I/O |
LCD Interactive Interface

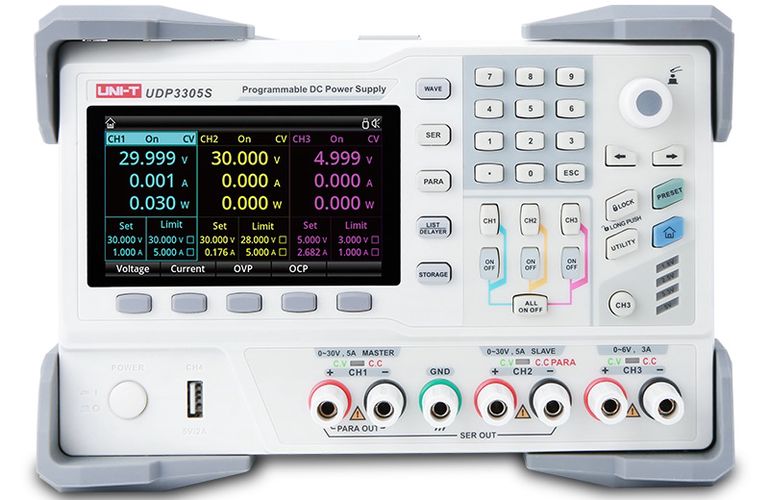

Using a 4.3" high definition display, the user is provided with a functional and easy to operate human-machine interface. It displays in real time the set output voltage/current, the actual output voltage/current and the protection limits (voltage/current) at the power supply. The functional interface is simple, clear and easy to operate.
List/Timer function
Up to 2048 data sets can be set according to the test requirements and the number of cycles can be up to 99999 using the list and hold setting functions. When used in conjunction with waveform templates, this is very convenient for cyclic and ageing tests.
One-button setup for serial or parallel operation
A serial or parallel connection can be set up between the main channels CH1 and CH2 without external connections, which simplifies the connection and facilitates testing.
Extensive remote control interface

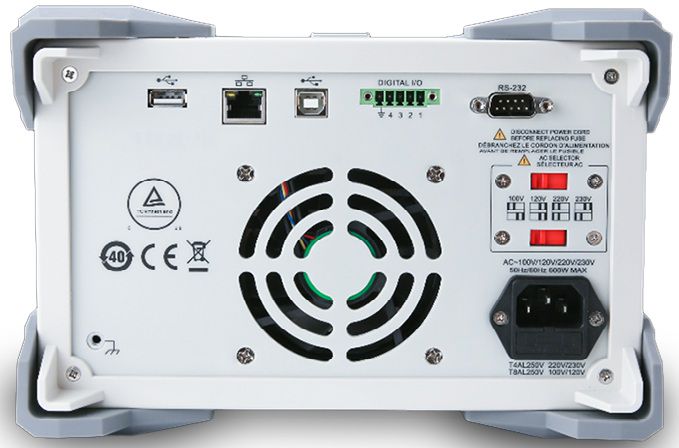

The standard RS232 communication interface, Ethernet interface, digital I/O and primary and secondary USB interfaces allow remote control via the Ethernet network or via the RS232 and USB connections, using PC software for control.
The description was translated using an automatic translator. If you notice any discrepancies, please notify us by email: [email protected].
Useful information
Specifications
Product description generated by artificial intelligence
UNI-T Programmable DC Power Supply: 4-Channel, 328W
This UNI-T programmable DC power supply is a versatile and precise instrument ideal for various applications requiring multiple independent voltage and current outputs. It's a powerful tool for research, development, and testing.
Key Features:
- Four independent channels offer flexibility for complex testing scenarios.
- High total power output of 328W allows for powering a wide range of devices.
- Precise voltage and current control ensures accurate and reliable power delivery.
- Multiple communication interfaces including RS232, RS485, USB, and LAN enable seamless integration with automated test systems.
- High resolution (10mV, 1mA) provides fine-grained control over output parameters.
Channel Specifications:
| Channel | Voltage Range | Current Range |
|---|---|---|
| CH1/CH2 | 0~30V | 5A |
| CH3 | 0~6V | 3A |
| CH4 | 5V | 2A |
Applications:
This programmable power supply is suitable for a wide range of applications, including:
- Electronic circuit testing and development
- Automated test systems
- Research and development
- Education and training
Why Choose This UNI-T Programmable Power Supply?
This 4-channel programmable DC power supply offers a combination of high power, precision, and versatile communication options. Its robust design and multiple output channels make it an invaluable tool for professionals and researchers requiring a reliable and flexible power source. The high resolution ensures accurate and precise control over the output, making it suitable for even the most demanding applications. Choose UNI-T for quality and performance.
