Handheld digital multimeter-oscilloscope, 25Mhz, 2 channels, 250 Msa/s, 3.5" TFL LCD, UNI-T
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description

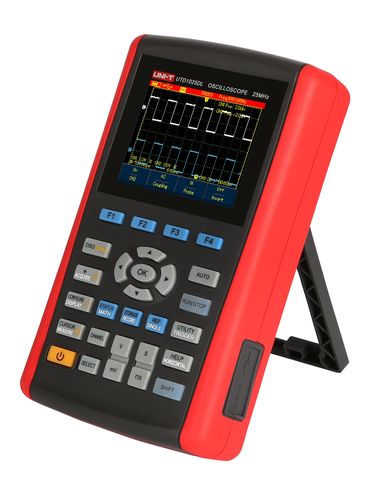

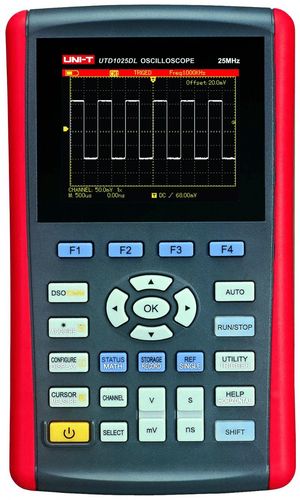

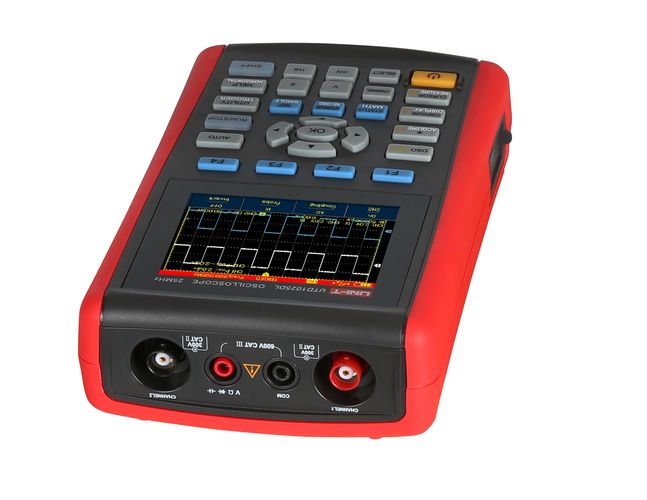

Oscilloscope UNI-T UTD1025DL
The UTD1000L Series is an economical hand-held digital storage oscilloscope, which integrates oscilloscope, multi-meter, trend chart and waveform recording function. The compact and portable design brings different visual and operational experience to users. This series can be powered by external power supply or built-in lithium batieries. It is a popular portable measuring instrument tailored for engineers.
SPECIFICATIONS (oscilloscope):
Channels 2
Bandwidth 25MHz
Sampling 200MS/s
Sample rate <14ns
Memory Depth 12kpst
Vertical Sensitivity 5mV/div ~ 20V/div
Time Base 10ns/div ~ 50s/div
Saving: bitmap, setup, wave
Trigger Modes: edge, puls, video, slope
Communication Interface: mini USB
SPECIFICATIONS (multimeter):
DC voltage 400mV/4V/40V/400V +-(1%+5)
AC voltageí 400mV/4V/40V/400V +-(1.2%+5)
DC current 400uA, 4000uA +-(1.2%+5), 40mA, 4000mA +-(1%+5), 10A +-(1.5%+5)
AC current 400uA, 4000uA +-(2%+5), 40mA, 4000mA +-(1.5%+5), 10A +-(2.5%+5)
Resistance 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ +-(1.2%+5), 40MΩ +-(1.5%+5)
Capacitance 51.20nF, 512nF, 5.120uF, 51.20uF, 100uF +-(3%+5)
Digits 4000
GENERAL CHARACTERISTICS:
Size: 199mm x 118mm x 49mm
Weight: 0,9Kg
LCD Size: 3,5", 320x240
Power: 100-240V 50/60Hz 1.5A
Standart Accessory: DC adaptor, Test Leads, OSC probe 1x/10x, 10A current divider,power cord, USB cable
Useful information
Specifications
Experimental product description generated by artificial intelligence
UNI-T Handheld Digital Multimeter Oscilloscope
This versatile handheld digital storage oscilloscope combines the functionality of an oscilloscope, multimeter, trend chart, and waveform recorder in a single, portable device. Ideal for engineers and technicians needing a compact and powerful solution for various measurement tasks.
Key Features
- Dual Channel: Simultaneously captures and displays signals from two channels.
- High Sampling Rate: 250 MSa/s for accurate waveform capture.
- High Bandwidth: 50MHz for capturing high-frequency signals.
- Integrated Multimeter: Performs various multimeter functions, including voltage, current, resistance, and capacitance measurements.
- User-Friendly Interface: Intuitive operation with a large, high-resolution 3.5-inch TFT color LCD.
- Auto-Setup Function: Quickly and accurately sets up measurements for signals with any DC component.
- Long Battery Life: Provides up to 6 hours of continuous operation on a single charge.
- Data Storage and Recall: Stores and recalls waveforms for later analysis.
Applications
This handheld multimeter-oscilloscope is suitable for a wide range of applications, including:
- Electronics troubleshooting and repair
- Signal analysis and testing
- Automotive diagnostics
- Industrial maintenance
- Education and training
Why Choose This Product?
The UNI-T handheld digital multimeter-oscilloscope offers a comprehensive solution for various measurement needs. Its compact design, ease of use, and powerful features make it an ideal choice for professionals and hobbyists alike.
| Specification | Value |
|---|---|
| Bandwidth | 50 MHz |
| Channels | 2 |
| Sampling Rate | 250 MSa/s |
| Display | 3.5" TFT Color LCD |
