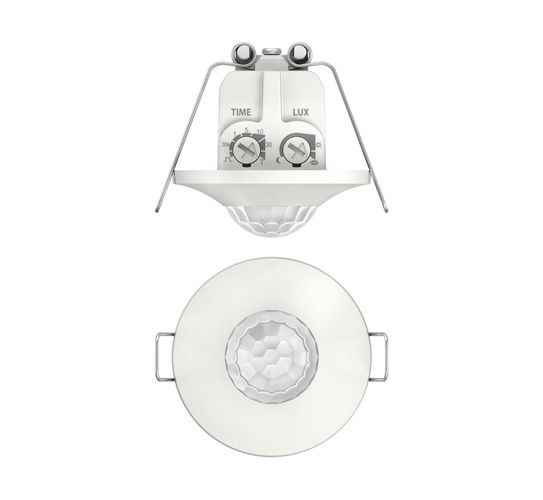

Recessed motion sensor Theben T2090200 thePiccola (360°, white)
Specifications
SKU
U-3049860
Product code
THEBEN2090200
Supplier product description
- Circular detection area 360°, up to Ø 8 m (50 m2) (2.5 m installation height)
- 1 channel lamp (relay 230 V)
- Option to choose fully or semi-automatic mode
- Impulse function of the staircase lighting time switch
- Configurable time delay
- General
- Operating voltage110 – 240 V AC
- Frequency50 – 60 Hz
- Installation height2 – 6 m
- Installation typeCeiling mounting
- ColourWhite
- Switching outputLight
- Power consumption~0.4 W
- Light measurementMixed light measurement
- Setting range brightness5 – 1000 lx
- Light switch-off delay30 s - 30 min
- LampsIncandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
- Incandescent/halogen lamp load2000 W
- Fluorescent lamp load (conventional) not corrected2000 VA
- Fluorescent lamp load (conventional) parallel-corrected1300 VA 140 µF
- Fluorescent lamp load (conventional) series-corrected2000 VA
- Fluorescent lamp load (electronic ballast)1200 W
- Detection range50 m² (ø 8 m | 360°)
- Detection angle360°
- Ambient temperature-20°C ... 50°C
- Type of protectionIP 55 (Sensor), IP 20 (power module)
