Product description

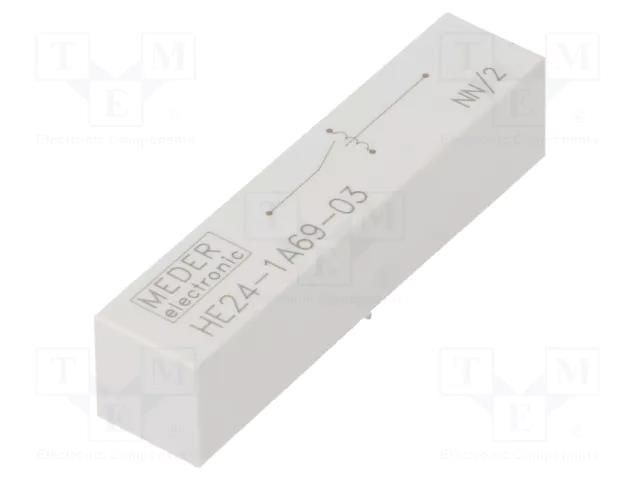

Relay: reed switch; Ucoil: 24VDC; SPST-NO; 5A; max.10kVDC; 50W; PCB MEDER
Useful information
Specifications
Supplier product description
Relay: reed switch; Ucoil: 24VDC; SPST-NO; 5A; max.10kVDC; 50W; PCB
Useful information
Supplier parameters
Product code
HE24-1A69-03
Product ID
U-2346262
Body dimensions
65x15.5x14.5mm
Coil power consumption
1.24W
Coil resistance
465Ω
Coil voltage
24V DC
Contact current max.
5A
Contact resistance
0.15Ω
Contacts configuration
SPST-NO
Manufacturer
MEDER
Min. insulation resistance
10000000MΩ
Mounting
PCB
Operate time
3ms
Operating temperature
-20...70°C
Release time
1.5ms
Switched voltage
max. 10kV DC
Switching capacity
50W
Type of relay
reed switch
Brand
MEDER
Supplier's product code
HE24-1A69-03
