Product description

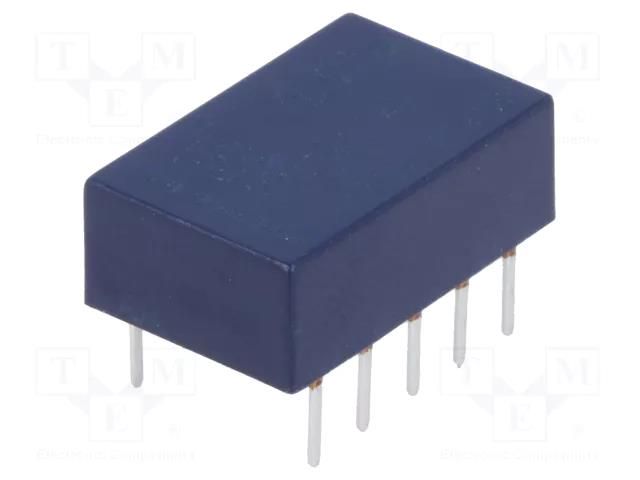

Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 2A; TQ PANASONIC
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 2A; TQ
Useful information
Supplier parameters
Product code
TQ2-L-12V
AC contacts rating @R
0.5A / 125V AC
Body dimensions
14x9x5mm
Coil current
5.8mA
Coil power consumption
70mW
Coil resistance
2057Ω
Contact current max.
2A
Contact material
silver alloy
Contact plating
gold-plated
Contacts configuration
DPDT
DC contacts rating @R
1A / 30V DC
Design
single coil
Manufacturer
PANASONIC
Manufacturer series
TQ
Mechanical durability
100000000 cycles
Mounting
PCB
Operating temperature
-40...70°C
Rated coil voltage
12V DC
Relay variant
subminiature
Switched voltage
max. 110V DC
Type of relay
electromagnetic
Brand
PANASONIC
Supplier's product code
TQ2-L-12V
Product ID
U-360943
