Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 20A FINDER
Product Code: 40.62.9.012.0000

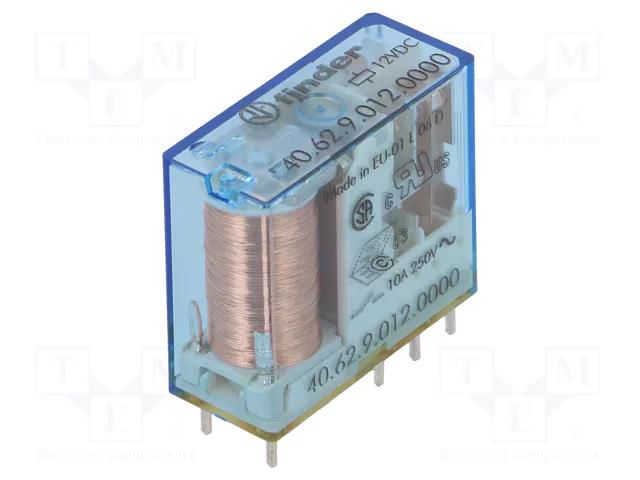

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 20A FINDER
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 20A
Useful information
Supplier parameters
Product code
40.62.9.012.0000
AC contacts rating @R
10A / 250V AC
Body dimensions
29x12.4x25mm
Coil current
55mA
Coil power consumption
650mW
Coil resistance
220Ω
Contact current max.
20A
Contact material
AgNi
Contacts configuration
DPDT
DC contacts rating @R
10A / 30V DC
Manufacturer
FINDER
Manufacturer series
40.62
Mounting
PCB
Operating temperature
-40...85°C
Rated coil voltage
12V DC
Relay variant
miniature
Switched voltage
max. 220V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Brand
FINDER
Supplier's product code
40.62.9.012.0000
Product ID
U-87534
