Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 15A FINDER
Product Code: 46.52.9.012.0040

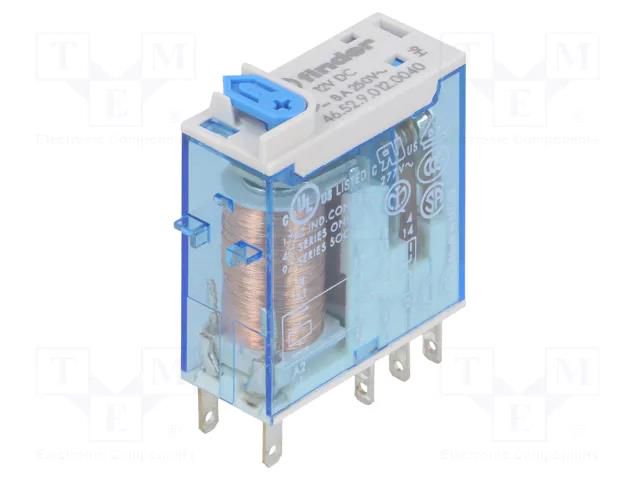

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 15A FINDER
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 15A
Useful information
Supplier parameters
Product code
46.52.9.012.0040
Supplier's product code
46.52.9.012.0040
Product ID
U-89986
AC contacts rating @R
8A / 250V AC
Body dimensions
29x12.4x32.8mm
Coil power consumption
0.5W
Coil resistance
300Ω
Coil voltage max.
13.2V DC
Coil voltage min.
8.8V DC
Contact current max.
15A
Contact material
AgNi
Contacts configuration
DPDT
DC contacts rating @R
8A / 30V DC
Design
test button
Manufacturer
FINDER
Manufacturer series
46.52
Mechanical durability
1000000 cycles
Mounting
PCB
Operating temperature
-40...70°C
Rated coil voltage
12V DC
Relay variant
miniature
Related items
97.02
Switched voltage
max. 220V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Brand
FINDER
