Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; IM TE Connectivity
Product Code: IM07TS

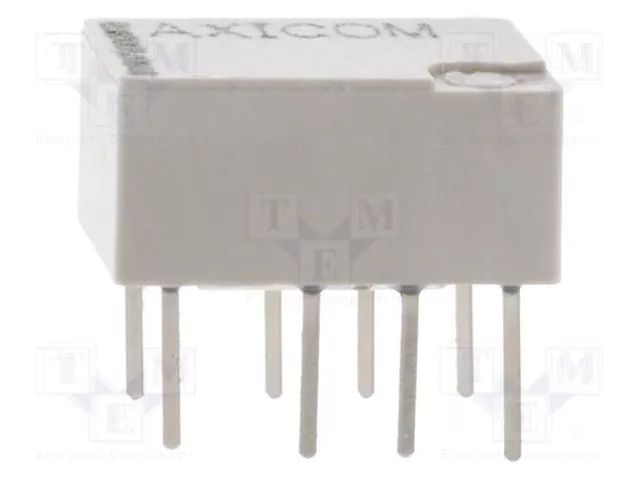

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; IM TE Connectivity
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; IM
Useful information
Supplier parameters
Product code
IM07TS
Supplier's product code
IM07TS
Product ID
U-215884
AC contacts rating @R
0.5A / 125V AC
Body dimensions
10x6x5.65mm
Coil power consumption
200mW
Coil resistance
2.88kΩ
Coil voltage min.
18V DC
Contact current max.
2A
Contact material
PdRu + Au
Contact resistance
50mΩ
Contacts configuration
DPDT
DC contacts rating @R
2A / 30V DC
IP rating
IP67
Manufacturer
TE Connectivity
Manufacturer series
IM
Mechanical durability
100000000 cycles
Mounting
THT
Operating temperature
-40...85°C
Rated coil voltage
24V DC
Relay variant
subminiature
Switched voltage
max. 220V DC
Switching capacity
62.5VA
Terminal pitch
2.2mm
Type of relay
electromagnetic
Brand
TE Connectivity
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
