Product description

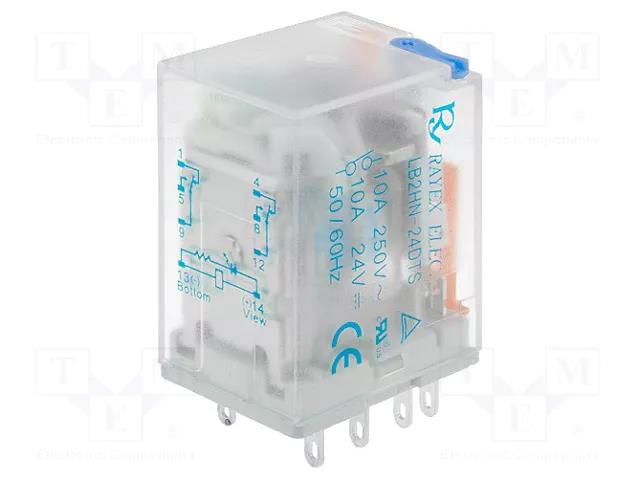

Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 10A Recoy/RAYEX ELECTRONICS
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 10A
Useful information
Supplier parameters
Product code
LB2HN-24DTS
AC contacts rating @R
10A / 240V AC
Body dimensions
28x21.5x35mm
Coil power consumption
1.1W
Coil resistance
650Ω
Contact current max.
10A
Contact resistance
100mΩ
Contacts configuration
DPDT
DC contacts rating @R
10A / 24V DC
Design
test button
Electrical life
100000 cycles
Indication
LED
Leads
connectors
Leads dimensions
2.5x0.5mm
Manufacturer
Recoy/RAYEX ELECTRONICS
Manufacturer series
LB2
Mechanical durability
10000000 cycles
Mounting
socket
Operate time
15ms
Operating temperature
-40...60°C
Rated coil voltage
24V DC
Relay variant
industrial
Related items
GZM3
Release time
15ms
Switched voltage
max. 30V DC
Type of relay
electromagnetic
Brand
Recoy/RAYEX ELECTRONICS
Supplier's product code
LB2HN-24DTS
Product ID
U-233795
