Product description

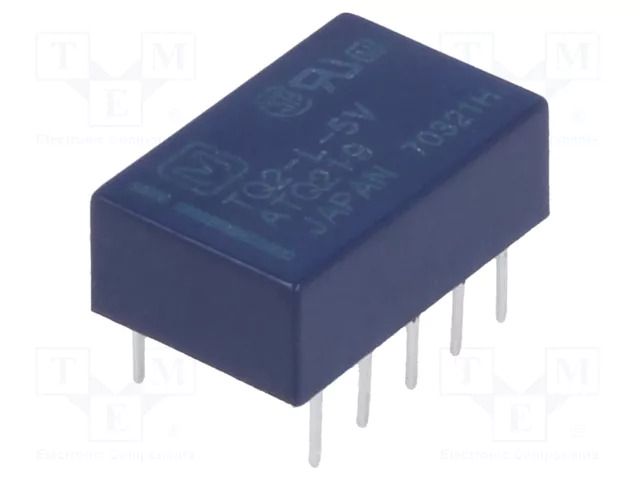

Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; TQ PANASONIC
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; TQ
Useful information
Supplier parameters
Product code
TQ2-L-5V
Brand
PANASONIC
Supplier's product code
TQ2-L-5V
Product ID
U-360948
AC contacts rating @R
0.5A / 125V AC
Body dimensions
14x9x5mm
Coil current
14mA
Coil power consumption
70mW
Coil resistance
357Ω
Contact current max.
2A
Contact material
silver alloy
Contact plating
gold-plated
Contacts configuration
DPDT
DC contacts rating @R
1A / 30V DC
Design
single coil
Manufacturer
PANASONIC
Manufacturer series
TQ
Mechanical durability
100000000 cycles
Mounting
PCB
Operating temperature
-40...70°C
Rated coil voltage
5V DC
Relay variant
subminiature
Switched voltage
max. 110V DC
Type of relay
electromagnetic
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
