Relay: electromagnetic power; SPST-NO; Ucoil: 24VDC; 35A; PCB; 1.4W ZETTLER
Product Code: AZSR131-1AE-24DGW

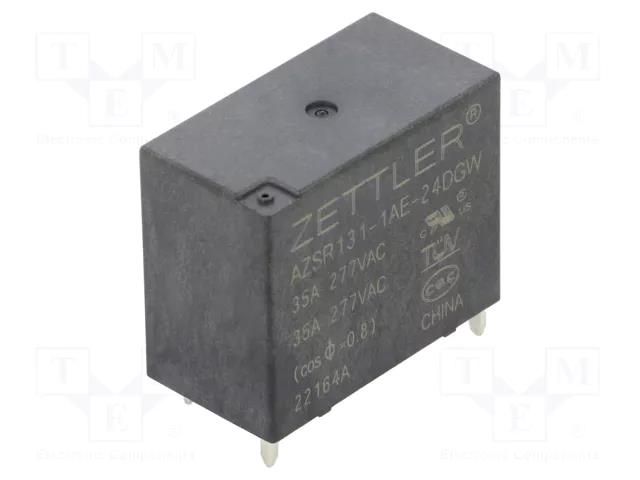

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic power; SPST-NO; Ucoil: 24VDC; 35A; PCB; 1.4W ZETTLER
Useful information
Specifications
Supplier product description
Relay: electromagnetic power; SPST-NO; Ucoil: 24VDC; 35A; PCB; 1.4W
Useful information
Supplier parameters
Product code
AZSR131-1AE-24DGW
Supplier's product code
AZSR131-1AE-24DGW
Product ID
U-3088018
AC contacts rating @R
35A / 277V AC
Body dimensions
30.4x15.9x25.15mm
Coil power consumption
1.4W
Coil resistance
230Ω
Contact current max.
35A
Contact material
AgSnO<sub>2</sub>
Contact resistance
3mΩ
Contacts configuration
SPST-NO
Manufacturer
ZETTLER
Mounting
PCB
Operating temperature
-40...85°C
Rated coil voltage
24V DC
Switched voltage
max. 277V AC
Type of relay
electromagnetic power
Brand
ZETTLER
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
