Product description

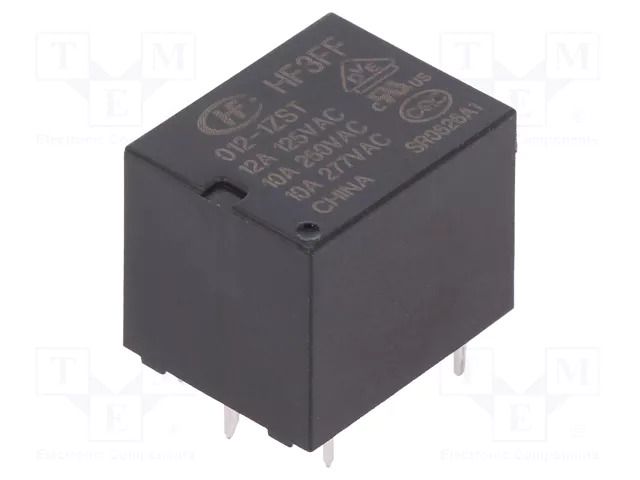

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 10A; 10A/277VAC; PCB HONGFA RELAY
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; 10A; 10A/277VAC; PCB
Useful information
Supplier parameters
Product code
HF3FF/012-1ZST
Brand
HONGFA RELAY
Supplier's product code
HF3FF/012-1ZST
Product ID
U-204201
AC contacts rating @R
10A / 277V AC
Body dimensions
19x15.5x15.2mm
Coil power consumption
360mW
Coil resistance
400Ω
Coil voltage max.
15.6V DC
Coil voltage min.
9V DC
Contact current max.
10A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
10A / 28V DC
Manufacturer
HONGFA RELAY
Mounting
PCB
Operate time
10ms
Operating temperature
-40...70°C
Rated coil voltage
12V DC
Relay variant
miniature
Release time
5ms
Switched voltage
max. 28V DC
Terminal pitch
2mm
Type of relay
electromagnetic
