Product description

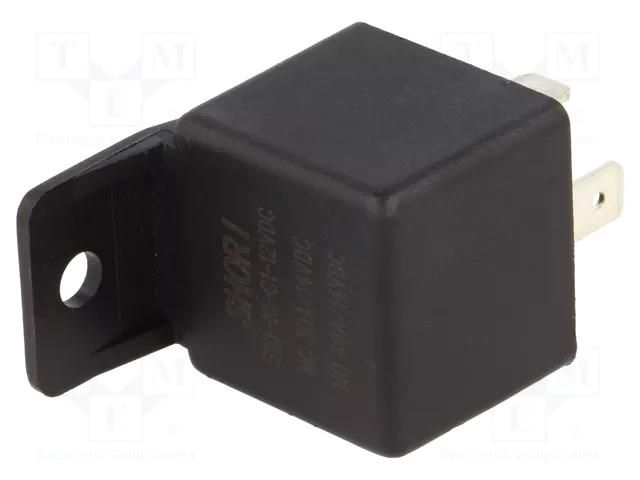

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; S10 SHORI ELECTRIC
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; S10
Useful information
Supplier parameters
Product code
S10-1C-C1-12VDC
Body dimensions
28.6x28.6x25.3mm
Coil current
150mA
Coil power consumption
1.8W
Coil resistance
80Ω
Coil voltage max.
18V DC
Coil voltage min.
9V DC
Contact current max.
40A
Contact material
silver alloy
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
40A / 12V DC
Electrical life
100000 cycles
Leads
connectors
Leads dimensions
6.3x0.8mm
Manufacturer
SHORI ELECTRIC
Manufacturer series
S10
Mechanical durability
10000000 cycles
Mounting
on panel
Operate time
10ms
Operating temperature
-30...80°C
Rated coil voltage
12V DC
Relay variant
automotive
Related items
CS1-CW
Release time
10ms
Type of relay
electromagnetic
Brand
SHORI ELECTRIC
Supplier's product code
S10-1C-C1-12VDC
Product ID
U-316862
