Product description

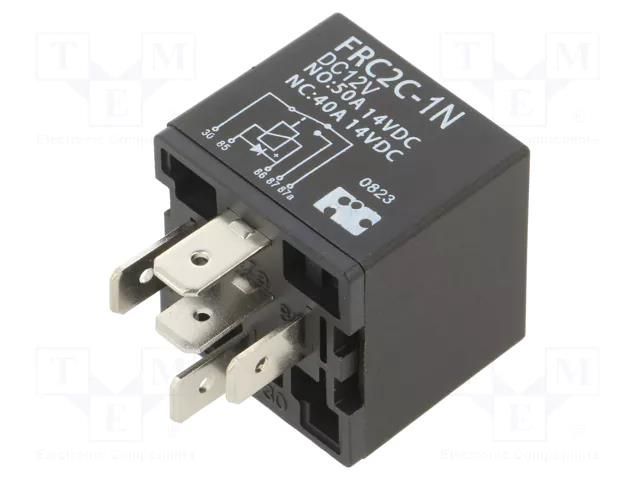

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 50A; automotive; FRC2 FORWARD INDUSTRIAL CO.
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; 50A; automotive; FRC2
Useful information
Supplier parameters
Product code
FRC2C-1N-DC12V
Supplier's product code
FRC2C-1N-DC12V
Product ID
U-2214513
Body dimensions
26.5x29x29mm
Coil current
150mA
Coil power consumption
1.8W
Coil resistance
80Ω
Coil voltage max.
15.6V DC
Coil voltage min.
7.8V DC
Contact current max.
50A
Contact material
AgSnO<sub>2</sub>
Contact resistance
30mΩ
Contacts configuration
SPDT
DC contacts rating @R
40A / 14V DC
Electrical life
100000 cycles
Leads
connectors
Leads dimensions
6.3x0.8mm
Manufacturer
FORWARD INDUSTRIAL CO.
Manufacturer series
FRC2
Mechanical durability
10000000 cycles
Mounting
on panel
Operate time
7ms
Operating temperature
-40...85°C
Rated coil voltage
12V DC
Relay variant
automotive
Related items
CS1-CW
Release time
5ms
Switched voltage
max. 75V DC
Type of relay
electromagnetic
Brand
FORYARD
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
