Product description

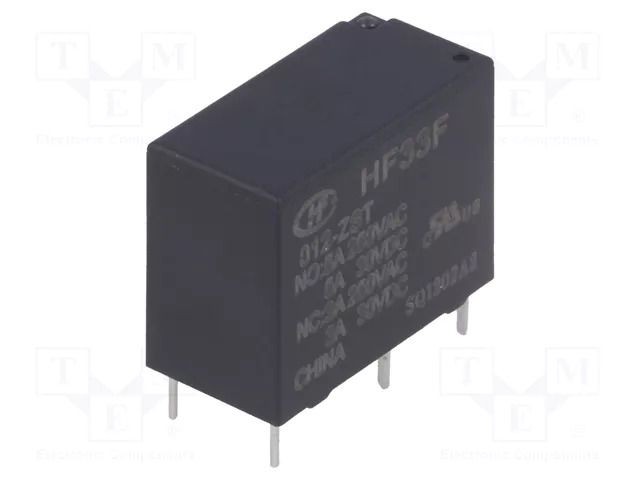

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 10A; 5A/250VAC; PCB HONGFA RELAY
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; 10A; 5A/250VAC; PCB
Useful information
Supplier parameters
Product code
HF33F/012-ZST
Supplier's product code
HF33F/012-ZST
Product ID
U-204164
AC contacts rating @R
5A / 250V AC
Body dimensions
20.5x15.3x10.2mm
Coil power consumption
450mW
Coil resistance
320Ω
Coil voltage max.
15.6V DC
Coil voltage min.
9V DC
Contact current max.
10A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
5A / 30V DC
Manufacturer
HONGFA RELAY
Mounting
PCB
Operate time
8ms
Operating temperature
-40...70°C
Rated coil voltage
12V DC
Relay variant
subminiature
Release time
5ms
Switched voltage
max. 30V DC
Terminal pitch
7.6mm
Type of relay
electromagnetic
Brand
HONGFA RELAY
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
