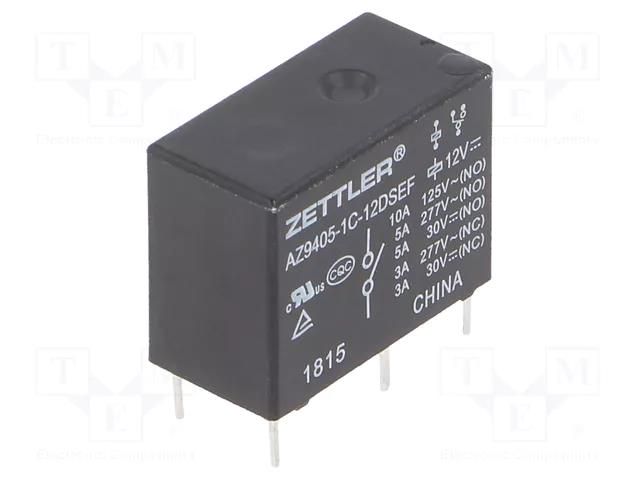

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 10A; 5A/277VAC; AZ9405 ZETTLER
Product Code: AZ9405-1C-12DSEF
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; 10A; 5A/277VAC; AZ9405 ZETTLER
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; 10A; 5A/277VAC; AZ9405
Useful information
Supplier parameters
Product code
AZ9405-1C-12DSEF
AC contacts rating @R
5A / 277V AC
Body dimensions
20x10x15.2mm
Coil power consumption
200mW
Coil resistance
720Ω
Contact current max.
10A
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
5A / 30V DC
Manufacturer
ZETTLER
Manufacturer series
AZ9405
Mounting
PCB
Operating temperature
-40...85°C
Rated coil voltage
12V DC
Relay variant
miniature
Switched voltage
max. 30V DC
Terminal pitch
7.62mm
Type of relay
electromagnetic
Brand
ZETTLER
Supplier's product code
AZ9405-1C-12DSEF
Product ID
U-121371
