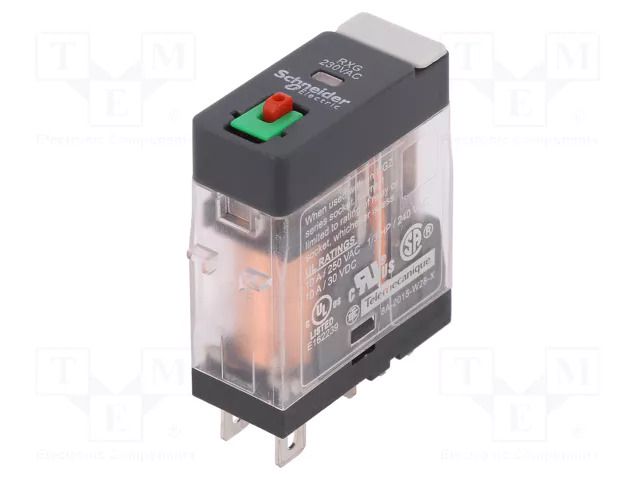

Relay: electromagnetic; SPDT; Ucoil: 230VAC; 10A; 10A/250VAC; RXG SCHNEIDER ELECTRIC
Product Code: RXG11P7
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; SPDT; Ucoil: 230VAC; 10A; 10A/250VAC; RXG SCHNEIDER ELECTRIC
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 230VAC; 10A; 10A/250VAC; RXG
Useful information
Supplier parameters
Product code
RXG11P7
Supplier's product code
RXG11P7
Product ID
U-316287
AC contacts rating @R
10A / 250V AC
Body dimensions
29x36.5x13mm
Coil power consumption
0.82VA
Contact current max.
10A
Contact material
AgSnO<sub>2</sub>In<sub>2</sub>O<sub>3</sub>
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
10A / 30V DC
Manufacturer
SCHNEIDER ELECTRIC
Manufacturer series
RXG
Mounting
socket
Operating temperature
-40...70°C
Optional equipment
test button with blocking function
Rated coil voltage
230V AC
Relay variant
miniature
Related items
RGZE1S35M
Switched voltage
max. 30V DC
Terminal pitch
5.2mm
Type of relay
electromagnetic
Trade name
Zelio Relay
Brand
SCHNEIDER ELECTRIC
