Product description

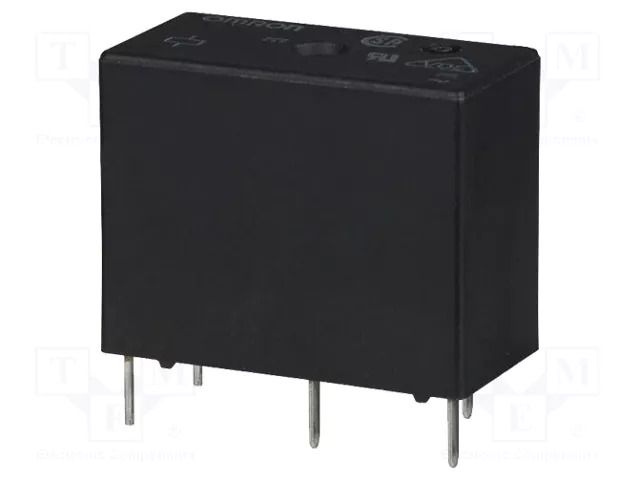

Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A OMRON Electronic Components
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A
Useful information
Supplier parameters
Product code
G5Q-14-EU-24DC
Brand
Omron
Supplier's product code
G5Q-14-EU-24DC
Product ID
U-194105
AC contacts rating @R
10A / 250V AC
Body dimensions
20.3x10.3x15.8mm
Coil current
16.7mA
Coil power consumption
400mW
Coil resistance
1.44kΩ
Contact current max.
10A
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
5A / 30V DC
Enclosure description
hermetic seal
Manufacturer
OMRON Electronic Components
Manufacturer series
G5Q-EU
Mounting
PCB
Operate time
10ms
Operating temperature
-40...85°C
Rated coil voltage
24V DC
Relay variant
miniature
Release time
5ms
Switched voltage
max. 30V DC
Terminal pitch
2.54mm
Type of relay
electromagnetic
