Product description

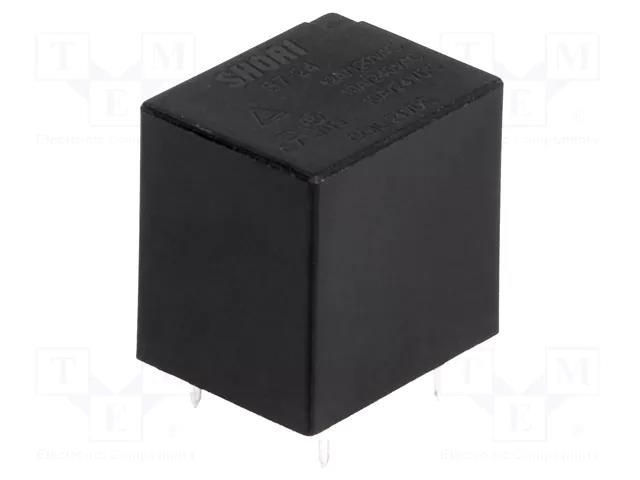

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 12A/120VAC; 10A/24VDC SHORI ELECTRIC
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 24VDC; 12A/120VAC; 10A/24VDC
Useful information
Supplier parameters
Product code
S7-24-1C
Product ID
U-317875
AC contacts rating @R
12A / 120V AC
Body dimensions
16.5x20x20.2mm
Coil current
15mA
Coil power consumption
360mW
Coil resistance
1.6kΩ
Contact resistance
50mΩ
Contacts configuration
SPDT
DC contacts rating @R
10A / 24V DC
Electrical life
100000 cycles
Manufacturer
SHORI ELECTRIC
Manufacturer series
S7
Mechanical durability
10000000 cycles
Mounting
PCB
Operating temperature
-30...55°C
Rated coil voltage
24V DC
Relay variant
miniature
Switched voltage
max. 30V DC
Type of relay
electromagnetic
Brand
SHORI ELECTRIC
Supplier's product code
S7-24-1C
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
