Product description

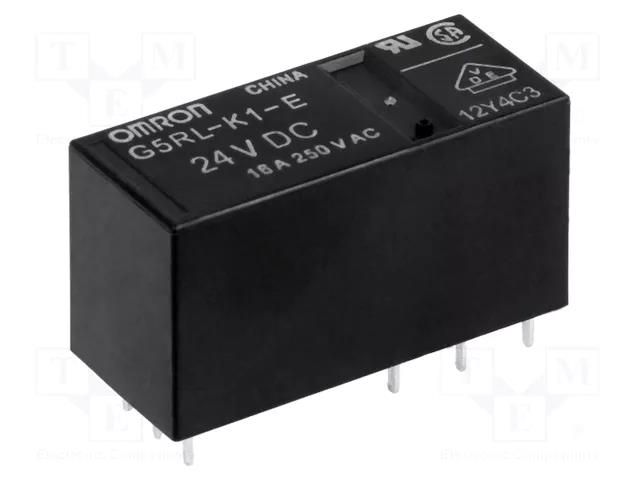

Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 16A OMRON Electronic Components
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 16A
Useful information
Supplier parameters
Product code
G5RL-K1-E-24DC
Supplier's product code
G5RL-K1-E-24DC
Product ID
U-194130
AC contacts rating @R
16A / 250V AC
Body dimensions
29x12.7x15.7mm
Coil current
35mA
Coil power consumption
840mW
Coil resistance
686Ω
Contact current max.
16A
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
16A / 24V DC
Design
two coils
Leads
for PCB
Manufacturer
OMRON Electronic Components
Manufacturer series
G5RL-K
Mounting
PCB
Operate time
15ms
Operating temperature
-40...85°C
Rated coil voltage
24V DC
Relay variant
miniature
Release time
15ms
Switched voltage
max. 24V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Brand
Omron
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
