Product description

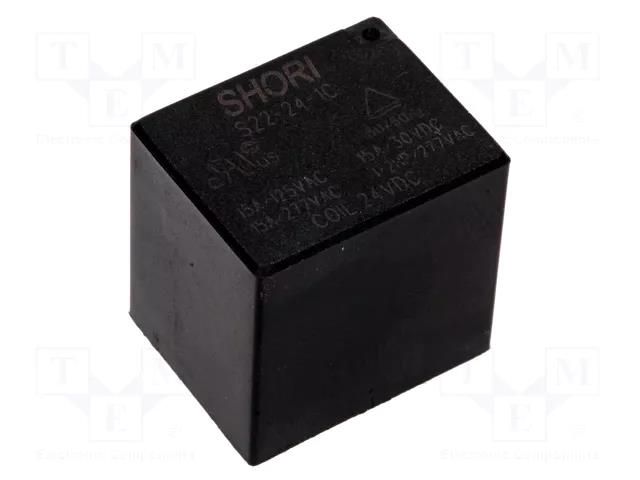

Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 16A SHORI ELECTRIC
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 16A
Useful information
Supplier parameters
Product code
S22-24-1C
Brand
SHORI ELECTRIC
Supplier's product code
S22-24-1C
Product ID
U-317464
AC contacts rating @R
17A / 277V AC
Body dimensions
21x20.6x16mm
Coil current
30mA
Coil power consumption
450mW
Coil resistance
1.6kΩ
Contact current max.
16A
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
16A / 30V DC
Electrical life
100000 cycles
Manufacturer
SHORI ELECTRIC
Manufacturer series
S22
Mechanical durability
10000000 cycles
Mounting
PCB
Operating temperature
-40...70°C
Rated coil voltage
24V DC
Relay variant
miniature
Switched voltage
max. 30V DC
Type of relay
electromagnetic
