Product description

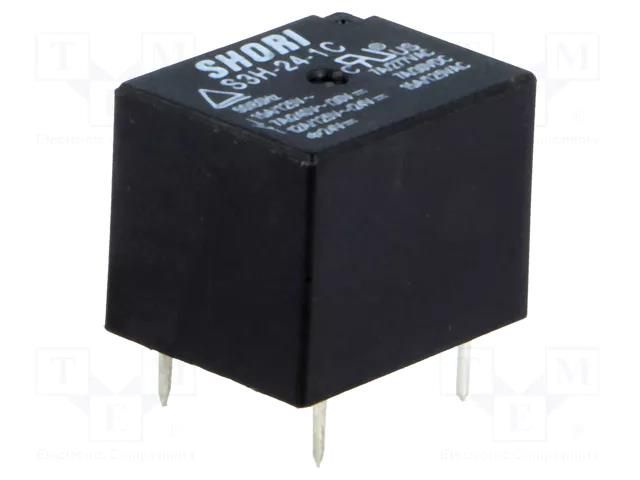

Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 15A SHORI ELECTRIC
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 15A
Useful information
Supplier parameters
Product code
S3H-24-1C
Product ID
U-317660
AC contacts rating @R
7A / 277V AC
Body dimensions
19.6x15.6x15mm
Coil current
15mA
Coil power consumption
360mW
Coil resistance
1.6kΩ
Contact current max.
15A
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
7A / 30V DC
Manufacturer
SHORI ELECTRIC
Manufacturer series
S3H
Mounting
PCB
Operate time
10ms
Operating temperature
-30...85°C
Rated coil voltage
24V DC
Relay variant
miniature
Release time
5ms
Switched voltage
max. 30V DC
Terminal pitch
2mm
Type of relay
electromagnetic
Brand
SHORI ELECTRIC
Supplier's product code
S3H-24-1C
