Product description

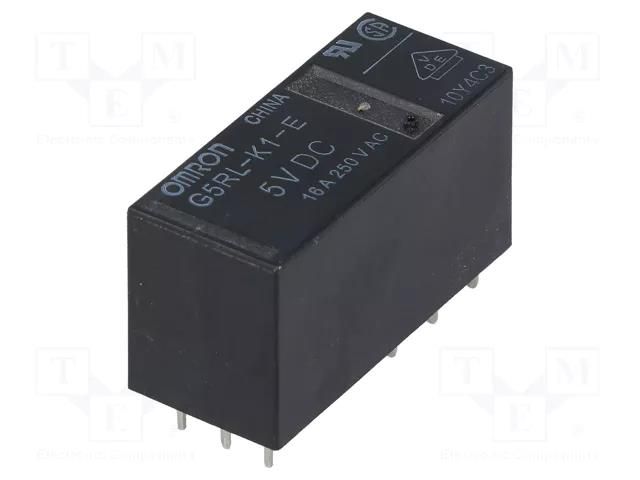

Relay: electromagnetic; SPDT; Ucoil: 5VDC; Icontacts max: 16A; PCB OMRON Electronic Components
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 5VDC; Icontacts max: 16A; PCB
Useful information
Supplier parameters
Product code
G5RL-K1-E-5DC
Supplier's product code
G5RL-K1-E-5DC
Product ID
U-194131
AC contacts rating @R
16A / 250V AC
Body dimensions
29x12.7x15.7mm
Coil current
150mA
Coil power consumption
0.75W
Coil resistance
33.3Ω
Contact current max.
16A
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
16A / 24V DC
Design
two coils
Leads
for PCB
Manufacturer
OMRON Electronic Components
Manufacturer series
G5RL-K
Mounting
PCB
Operate time
15ms
Operating temperature
-40...85°C
Rated coil voltage
5V DC
Relay variant
miniature
Release time
15ms
Switched voltage
max. 24V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Brand
Omron
