Product description

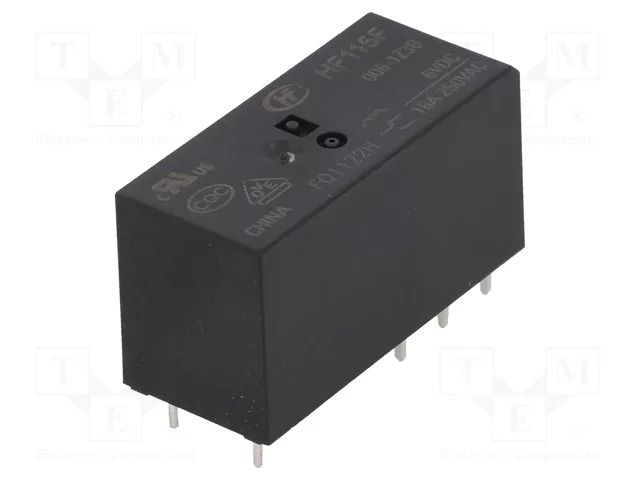

Relay: electromagnetic; SPDT; Ucoil: 6VDC; 16A; 16A/250VAC; HF115F HONGFA RELAY
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 6VDC; 16A; 16A/250VAC; HF115F
Useful information
Supplier parameters
Product code
HF115F/006-1Z3B
AC contacts rating @R
16A / 250V AC
Body dimensions
29x12.7x15.7mm
Coil power consumption
400mW
Coil resistance
90Ω
Coil voltage max.
9V DC
Coil voltage min.
4.2V DC
Contact current max.
16A
Contact material
AgNi
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
16A / 24V DC
Manufacturer
HONGFA RELAY
Manufacturer series
HF115F
Mounting
PCB
Operate time
15ms
Operating temperature
-40...85°C
Rated coil voltage
6V DC
Relay variant
miniature
Release time
8ms
Switched voltage
max. 300V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Supplier's product code
HF115F/006-1Z3B
Product ID
U-204067
Brand
HONGFA RELAY
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
