Relay: electromagnetic; SPST-NC; Ucoil: 12VDC; 8A; 8A/250VAC; RM96 RELPOL
Product Code: RM96-3031-35-1012

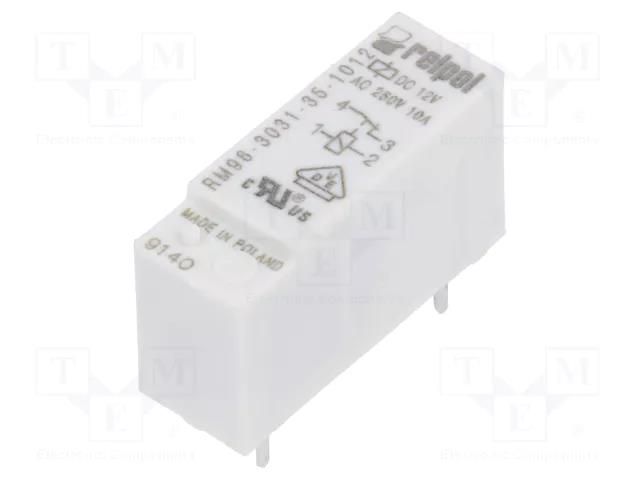

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; SPST-NC; Ucoil: 12VDC; 8A; 8A/250VAC; RM96 RELPOL
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NC; Ucoil: 12VDC; 8A; 8A/250VAC; RM96
Useful information
Supplier parameters
Product code
RM96-3031-35-1012
Supplier's product code
RM96-3031-35-1012
Product ID
U-312169
AC contacts rating @R
8A / 250V AC
Body dimensions
28x10x16.2mm
Coil power consumption
300mW
Coil resistance
660Ω
Coil voltage max.
29.5V DC
Coil voltage min.
8.4V DC
Contact current max.
8A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPST-NC
DC contacts rating @R
8A / 24V DC
Height
16.2mm
IP rating
IP67
Manufacturer
RELPOL
Manufacturer series
RM96
Mechanical durability
20000000 cycles
Mounting
PCB
Number of pins
4
OEM number
852871
Operate time
10ms
Operating temperature
-40...80°C
Rated coil voltage
12V DC
Relay variant
miniature
Release time
5ms
Switched voltage
max. 120V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Brand
RELPOL
