Product description

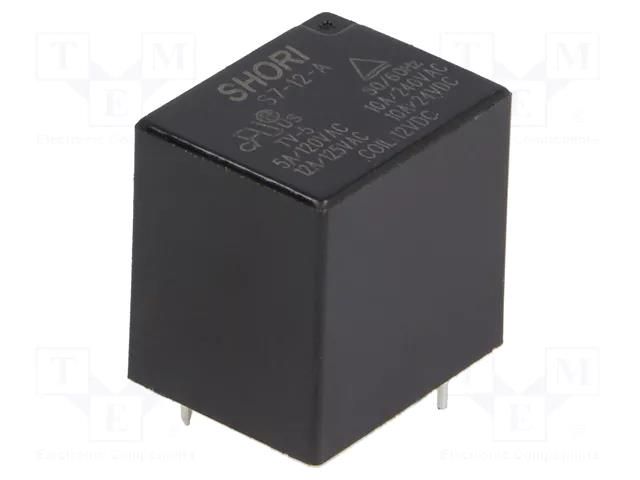

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 15A/125VAC; S7; PCB SHORI ELECTRIC
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 15A/125VAC; S7; PCB
Useful information
Supplier parameters
Product code
S7-12-1A
Product ID
U-317872
AC contacts rating @R
15A / 125V AC
Body dimensions
16.5x20x20.2mm
Coil current
30mA
Coil power consumption
360mW
Coil resistance
400Ω
Contact resistance
50mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
10A / 24V DC
Electrical life
100000 cycles
Manufacturer
SHORI ELECTRIC
Manufacturer series
S7
Mechanical durability
10000000 cycles
Mounting
PCB
Operating temperature
-30...55°C
Rated coil voltage
12V DC
Relay variant
miniature
Switched voltage
max. 30V DC
Type of relay
electromagnetic
Brand
SHORI ELECTRIC
Supplier's product code
S7-12-1A
