Product description

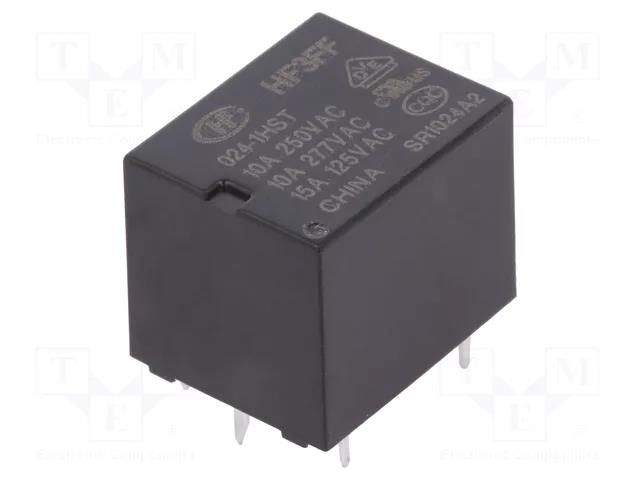

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 15A; 10A/277VAC HONGFA RELAY
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 15A; 10A/277VAC
Useful information
Supplier parameters
Product code
HF3FF/024-1HST
Brand
HONGFA RELAY
Supplier's product code
HF3FF/024-1HST
Product ID
U-204202
AC contacts rating @R
10A / 277V AC
Body dimensions
19x15.5x15.2mm
Coil power consumption
360mW
Coil resistance
1.6kΩ
Coil voltage max.
31.2V DC
Coil voltage min.
18V DC
Contact current max.
15A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
10A / 28V DC
Manufacturer
HONGFA RELAY
Mounting
PCB
Operate time
10ms
Operating temperature
-40...70°C
Rated coil voltage
24V DC
Relay variant
miniature
Release time
5ms
Switched voltage
max. 28V DC
Terminal pitch
2mm
Type of relay
electromagnetic
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
