Product description

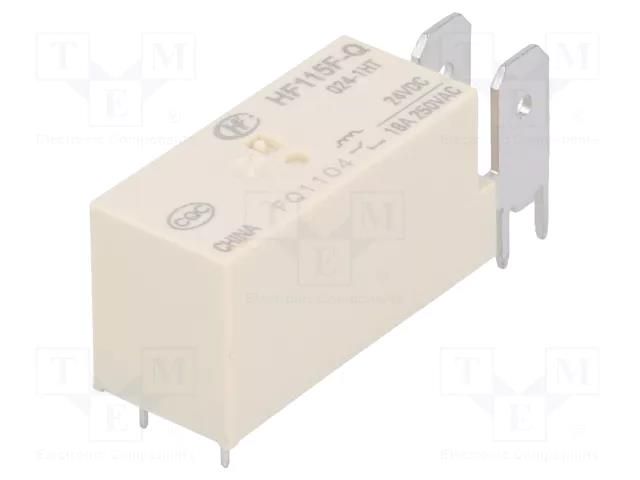

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 20A; 20A/250VAC HONGFA RELAY
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 20A; 20A/250VAC
Useful information
Supplier parameters
Product code
HF115F-Q/024-1HT
Product ID
U-204126
AC contacts rating @R
20A / 250V AC
Body dimensions
41x15.7x12.7mm
Coil power consumption
400mW
Coil resistance
1.44kΩ
Coil voltage max.
36V DC
Coil voltage min.
16.8V DC
Contact current max.
20A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
20A / 24V DC
Manufacturer
HONGFA RELAY
Mounting
PCB
Operate time
15ms
Operating temperature
-40...125°C
Rated coil voltage
24V DC
Relay variant
miniature
Release time
8ms
Switched voltage
max. 300V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Brand
HONGFA RELAY
Supplier's product code
HF115F-Q/024-1HT
