Product description

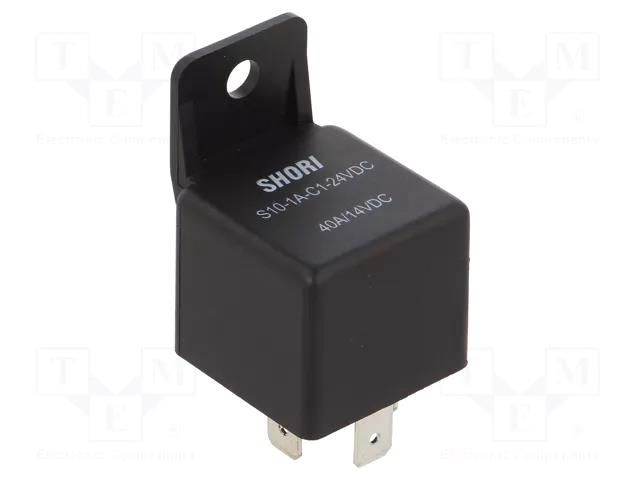

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 40A; automotive SHORI ELECTRIC
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 40A; automotive
Useful information
Supplier parameters
Product code
S10-1A-C1-24VDC
Body dimensions
28.6x28.6x25.3mm
Coil current
75mA
Coil power consumption
1.8W
Coil resistance
320Ω
Coil voltage max.
36V DC
Coil voltage min.
18V DC
Contact current max.
40A
Contact material
silver alloy
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
40A / 12V DC
Electrical life
100000 cycles
Leads
connectors
Leads dimensions
6.3x0.8mm
Manufacturer
SHORI ELECTRIC
Manufacturer series
S10
Mechanical durability
10000000 cycles
Mounting
on panel
Operate time
10ms
Operating temperature
-30...80°C
Rated coil voltage
24V DC
Relay variant
automotive
Related items
CS1-CW
Release time
10ms
Type of relay
electromagnetic
Brand
SHORI ELECTRIC
Supplier's product code
S10-1A-C1-24VDC
Product ID
U-316861
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
