Product description

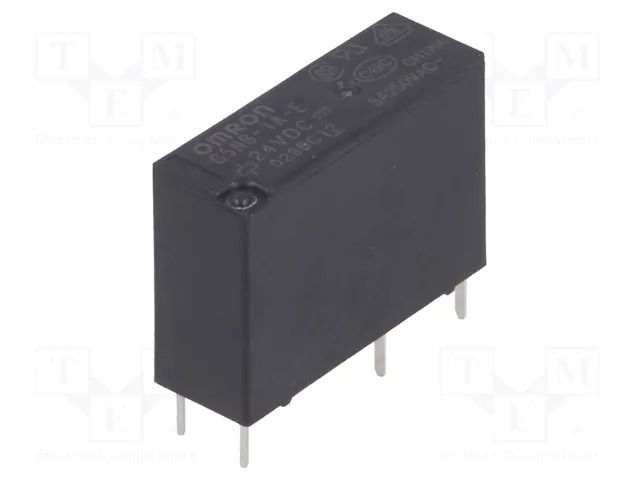

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 5A OMRON Electronic Components
Useful information
Specifications
SKU
U-194099
Product code
G5NB-1A-E-24DC
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 5A
Useful information
Supplier parameters
Product code
G5NB-1A-E-24DC
AC contacts rating @R
5A / 250V AC
Body dimensions
20.5x7.2x15.3mm
Coil current
8.3mA
Coil power consumption
200mW
Coil resistance
2.88kΩ
Contact current max.
5A
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
3A / 30V DC
Enclosure description
standard seal
Manufacturer
OMRON Electronic Components
Manufacturer series
G5NB
Mounting
PCB
Operate time
10ms
Operating temperature
-40...70°C
Rated coil voltage
24V DC
Relay variant
miniature
Release time
10ms
Switched voltage
max. 30V DC
Terminal pitch
7mm
Type of relay
electromagnetic
Brand
OMRON Electronic Components
Supplier's product code
G5NB-1A-E-24DC
Product ID
U-194099
