Product description

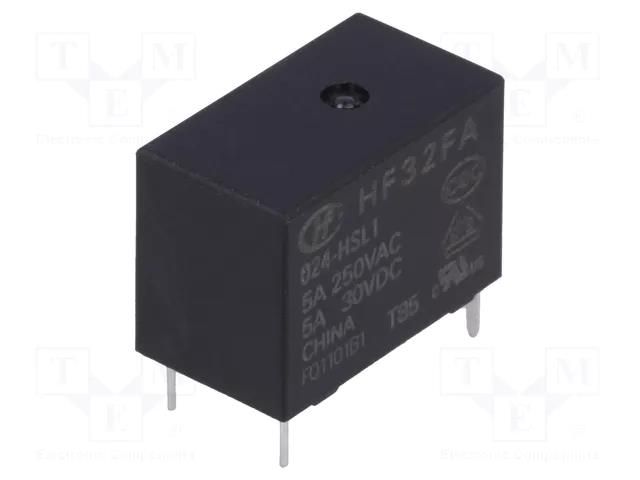

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A; 5A/250VAC; PCB HONGFA RELAY
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A; 5A/250VAC; PCB
Useful information
Supplier parameters
Brand
HONGFA RELAY
Supplier's product code
HF32FA/024-HSL1
Product ID
U-204158
AC contacts rating @R
5A / 250V AC
Body dimensions
17.6x10.1x12.3mm
Coil power consumption
200mW
Coil resistance
2.8kΩ
Coil voltage max.
40.8V DC
Coil voltage min.
18V DC
Contact current max.
5A
Contact material
AgNi
Contact resistance
70mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
5A / 30V DC
Manufacturer
HONGFA RELAY
Mounting
PCB
Operate time
8ms
Operating temperature
-40...85°C
Rated coil voltage
24V DC
Relay variant
subminiature
Release time
4ms
Switched voltage
max. 30V DC
Type of relay
electromagnetic
Product code
HF32FA/024-HSL1
