Product description

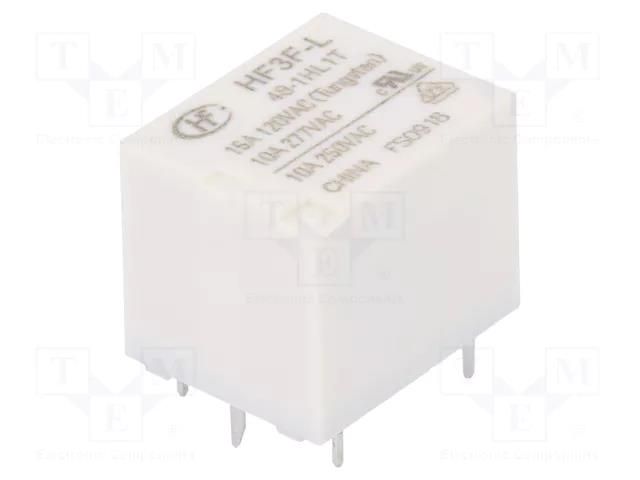

Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; 15A; 10A/277VAC HONGFA RELAY
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; 15A; 10A/277VAC
Useful information
Supplier parameters
Product code
HF3F-L/48-1HL1T
Brand
HONGFA RELAY
Supplier's product code
HF3F-L/48-1HL1T
Product ID
U-204212
AC contacts rating @R
10A / 277V AC
Body dimensions
19x15.5x15.2mm
Coil power consumption
400mW
Coil resistance
5.76kΩ
Coil voltage max.
96V DC
Coil voltage min.
38.4V DC
Contact current max.
15A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
10A / 30V DC
Design
single coil
Manufacturer
HONGFA RELAY
Mounting
PCB
Operate time
8ms
Operating temperature
-40...85°C
Rated coil voltage
48V DC
Relay variant
subminiature
Release time
5ms
Switched voltage
max. 30V DC
Type of relay
electromagnetic
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
