Product description

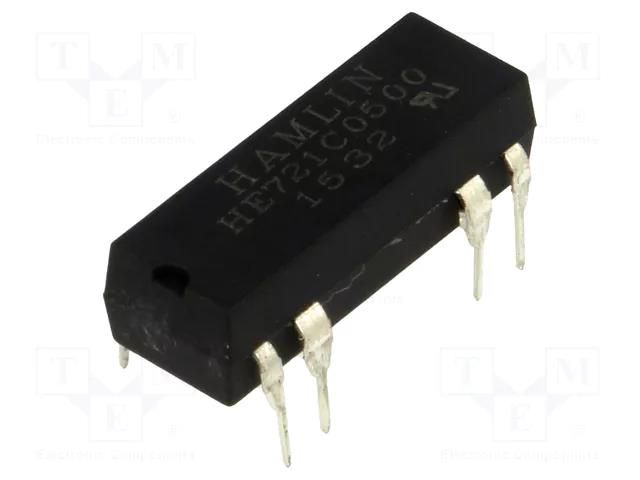

Relay: reed switch; SPDT; Ucoil: 5VDC; max.175VDC; Rcoil: 200Ω; PCB LITTELFUSE
Useful information
Specifications
Supplier product description
Relay: reed switch; SPDT; Ucoil: 5VDC; max.175VDC; Rcoil: 200Ω; PCB
Useful information
Supplier parameters
Product code
HE721C0500
Brand
LITTELFUSE
Supplier's product code
HE721C0500
Product ID
U-202645
Body dimensions
5.5x7.22x19.05mm
Case
DIP
Coil power consumption
125mW
Coil resistance
200Ω
Coil voltage max.
14V DC
Coil voltage min.
3.75V DC
Contact resistance
0.2Ω
Contacts configuration
SPDT
Manufacturer
LITTELFUSE
Manufacturer series
HE700
Mounting
PCB
Operating temperature
-40...85°C
Rated coil voltage
5V DC
Switched voltage
max. 175V DC
Terminal pitch
2.54mm
Type of relay
reed switch
