Product description

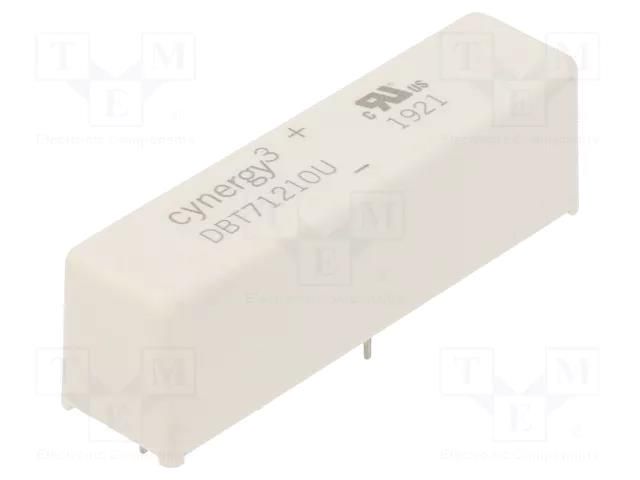

Relay: reed switch; SPST-NC; Ucoil: 12VDC; 3A; max.7kVDC; max.7kVAC SENSATA / CYNERGY3
Useful information
Specifications
SKU
U-2218101
Product code
DBT71210U
Supplier product description
Relay: reed switch; SPST-NC; Ucoil: 12VDC; 3A; max.7kVDC; max.7kVAC
Useful information
Supplier parameters
Product code
DBT71210U
Supplier's product code
DBT71210U
Product ID
U-2218101
Coil resistance
240Ω
Coil voltage min.
9V DC
Contact current max.
3A
Contact material
tungsten
Contact resistance
250Ω
Contacts configuration
SPST-NC
Electrical life
10000000000 cycles
Insulation voltage
17kV
Manufacturer
SENSATA / CYNERGY3
Manufacturer series
D
Operate time
2ms
Operating temperature
-20...70°C
Rated coil voltage
12V DC
Release time
3ms
Switched voltage
max. 7kV AC
Type of relay
reed switch
Brand
SENSATA / CYNERGY3
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
