Product description

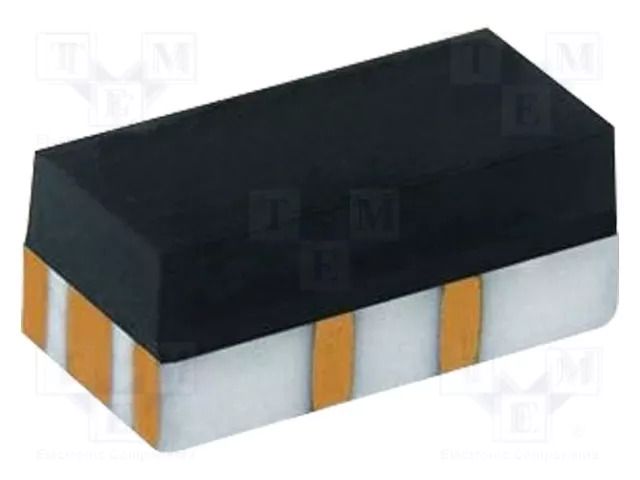

Relay: reed switch; SPST-NC; Ucoil: 5VDC; 0.5A; max.170VDC; 10W MEDER
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NC; Ucoil: 5VDC; 0.5A; max.170VDC; 10W
Useful information
Supplier parameters
Product code
CRR05-1B
Brand
MEDER
Supplier's product code
CRR05-1B
Product ID
U-155718
Body dimensions
4.4x8.6x6mm
Coil power consumption
167mW
Coil resistance
150Ω
Contact current max.
0.5A
Contacts configuration
SPST-NC
Manufacturer
MEDER
Manufacturer series
CRR
Mounting
SMD
Operate time
0.6ms
Operating temperature
-40...125°C
Rated coil voltage
5V DC
Release time
50µs
Switched voltage
max. 170V AC
Switching capacity
10W
Type of relay
reed switch
