Product description

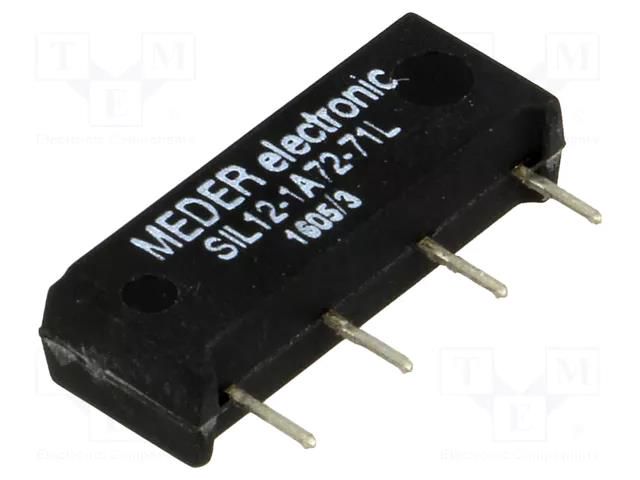

Relay: reed switch; SPST-NO; Ucoil: 12VDC; 1.25A; max.200VDC; 145mW MEDER
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 12VDC; 1.25A; max.200VDC; 145mW
Useful information
Supplier parameters
Brand
MEDER
Supplier's product code
SIL12-1A72-71L
Product ID
U-324456
Body dimensions
19.2x5.08x7.62mm
Case
SIL
Coil power consumption
145mW
Coil resistance
1kΩ
Coil voltage max.
33V DC
Coil voltage min.
8.4V DC
Contact current max.
1.25A
Contact resistance
0.15Ω
Contacts configuration
SPST-NO
Manufacturer
MEDER
Manufacturer series
SIL
Mounting
PCB
Operating temperature
-20...70°C
Rated coil voltage
12V DC
Switched voltage
max. 200V DC
Terminal pitch
5.08mm
Type of relay
reed switch
Product code
SIL12-1A72-71L
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
