Product description

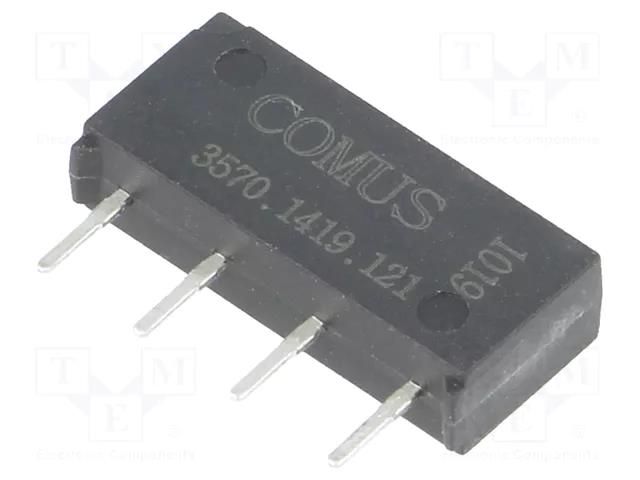

Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 10W COMUS
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 10W
Useful information
Supplier parameters
Product code
3570.1419.121
Body dimensions
15.24x6.98x3.81mm
Case
SIP
Coil resistance
1kΩ
Coil voltage max.
16V DC
Coil voltage min.
9V DC
Contact current max.
0.5A
Contact resistance
0.15Ω
Contacts configuration
SPST-NO
Manufacturer
COMUS
Manufacturer series
3570
Mounting
THT
Operating temperature
-40...85°C
Rated coil voltage
12V DC
Relay features
high reliability
Switched voltage
max. 200V DC
Product ID
U-83747
Switching capacity
10W
Terminal pitch
3.81mm
Type of relay
reed switch
Brand
COMUS
Supplier's product code
3570.1419.121
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
