Product description

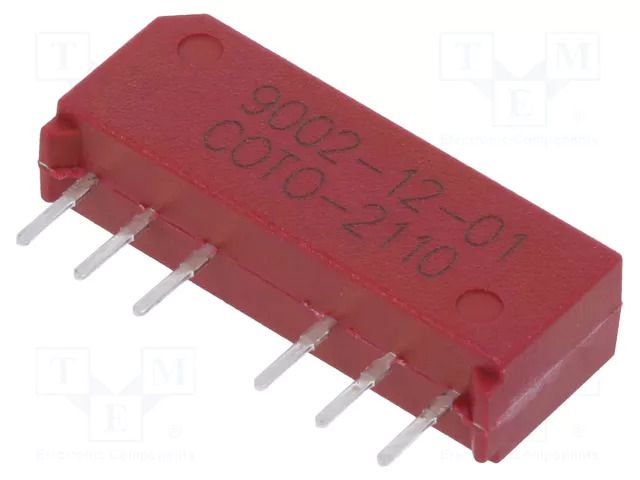

Relay: reed switch; SPST-NO; Ucoil: 12VDC; 0.5A; max.200VDC; 10W COTO TECHNOLOGY
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 12VDC; 0.5A; max.200VDC; 10W
Useful information
Supplier parameters
Product code
9002-12-01
Supplier's product code
9002-12-01
Product ID
U-2217157
Body dimensions
19.3x8.1x5.08mm
Case
SIP
Coil resistance
750Ω
Coil voltage max.
15V DC
Coil voltage min.
9V DC
Contact current max.
0.5A
Contact resistance
0.2Ω
Contacts configuration
SPST-NO
Manufacturer
COTO TECHNOLOGY
Manufacturer series
9000
Mounting
THT
Operating temperature
-20...85°C
Optional equipment
coaxial shield
Rated coil voltage
12V DC
Switched voltage
max. 200V DC
Switching capacity
10W
Terminal pitch
2.54mm
Type of relay
reed switch
Brand
COTO TECHNOLOGY
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
