Product description

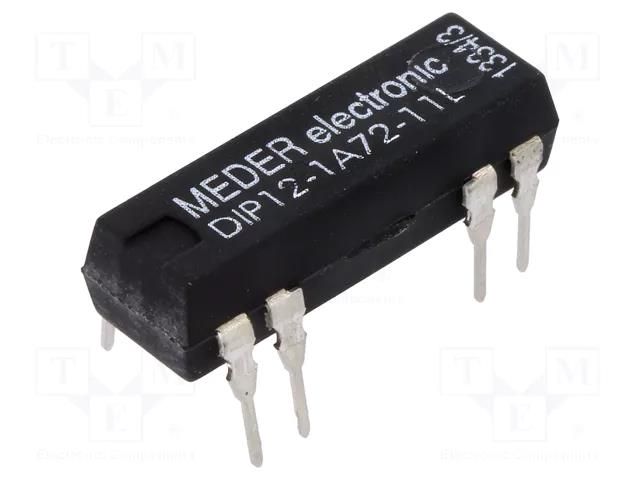

Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 144mW MEDER
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 144mW
Useful information
Supplier parameters
Product code
DIP12-1A72-11L
Brand
MEDER
Supplier's product code
DIP12-1A72-11L
Product ID
U-164773
Coil current
12mA
Coil power consumption
144mW
Coil resistance
1kΩ
Contact current max.
0.5A
Contact resistance
0.15Ω
Contacts configuration
SPST-NO
Manufacturer
MEDER
Manufacturer series
DIP
Operating temperature
-20...70°C
Rated coil voltage
12V DC
Switched voltage
max. 200V DC
Type of relay
reed switch
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
