Product description

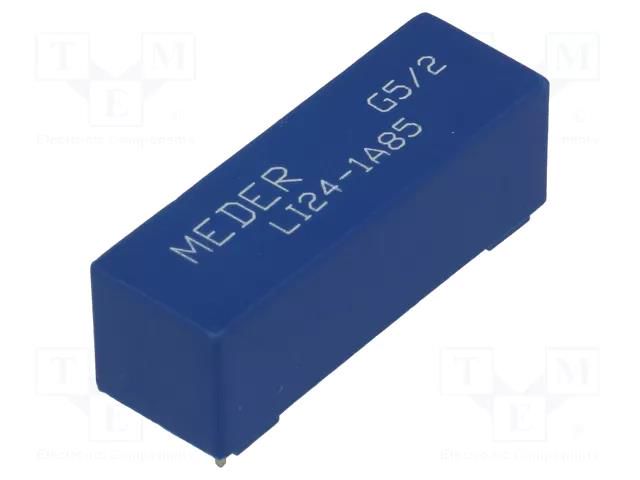

Relay: reed switch; SPST-NO; Ucoil: 24VDC; 2.5A; max.1kVDC; 100W MEDER
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 24VDC; 2.5A; max.1kVDC; 100W
Useful information
Supplier parameters
Product code
LI24-1A85
Brand
MEDER
Supplier's product code
LI24-1A85
Product ID
U-236355
Body dimensions
30x10x10.4mm
Breakdown voltage
4.2kV
Coil power consumption
290mW
Coil resistance
2kΩ
Contact current max.
2.5A
Contact resistance
0.15Ω
Contacts configuration
SPST-NO
Manufacturer
MEDER
Manufacturer series
LI
Min. insulation resistance
1TΩ
Mounting
PCB
Operate time
1ms
Operating temperature
-20...70°C
Rated coil voltage
24V DC
Release time
0.1ms
Switched voltage
max. 1kV DC
Switching capacity
100W
Terminal pitch
5.08mm
Type of relay
reed switch
